Panasonic PLC ZD Motor PCB Unloader Approx 6 Seconds SMT Line With SMEMA

Brand Name:	HSTECH
Model Number:	HS-UD330
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Unloader

Other Name:

SMT Line Unloader

PCB Size:

50*50~450*330mm

PCB Unloading Time:

Approx 6 Seconds

Magazine Change Over Time:

Approx 30 Seconds

Power Supply:

AC220V, 50/60Hz

PCB Thickness:

Min 4mm

Communication:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Mitsubishi PLC SMT Line Unloader

ZD Motor SMT Line Unloader

6 Seconds SMT Line Unloader

Product Description

Panasonic PLC ZD Motor Approx 6 Seconds SMT Line Unloader with SMEMA

Introduction

PCB Unloader is the back-end equipment of SMT (Surface Mount Technology) production line, mainly used to automatically receive, sort and stack PCBs that have been soldered or mounted, improve production efficiency and reduce manual intervention

Application

This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.

Features

1, Mitsubishi PLC

2, ZD motor driven.

3, Thicker transporting conveyor belt.

4, 3 magazines for changing over, top side one magazine, button side 2 magazines.

5, LED button control mode with 3 lolor light display.

6, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.

7, Smooth and parallel width adjustment with hand crank.

8, Precision pusher push the pcbs to the magazines

9, Top and bottom pneumatic clamps to secure magazine rack.

10, SMEMA compatible.

Specification

Function	This unit is used for unloading the PCBs.
Transport height	910±30mm
PCB loading time	Approx 6 seconds
Magazine change over time	Approx 30 seconds
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side(or specify)
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 2 pc
Conveyor speed	0.5-20M/min or customized
Pitch selection	1-4(10mm pitch)
Signal	SMEMA

Model	HS-UD250	HS-UD330	HS-UD390	HS-UD460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine dimension	19008001200mm	23208801200mm	26209401200mm	262010801200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	220kg	280kg	320kg

Main types of PCB Unloaders

(1) Standard PCB Unloader
Function: Basic PCB receiving and stacking, no sorting function.

Applicable scenarios: Low-complexity production lines, such as consumer electronics.

(2) Sorting PCB Unloader
Function: Integrated optical inspection (such as linkage with AOI), automatic sorting of good/bad products.

Applicable scenarios: High-reliability industries such as automotive electronics and medical equipment.

(3) Fully automatic Magazine Unloader
Function: Supports automatic switching of multiple magazines and seamless connection to MES system.

Applicable scenarios: Large-scale 24-hour production (such as mobile phone motherboards).

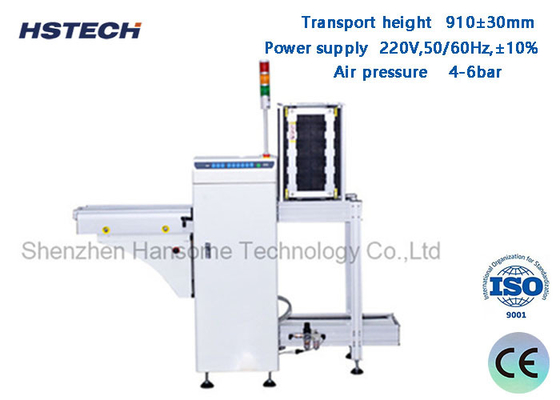

Panasonic PLC ZD Motor PCB Unloader Approx 6 Seconds SMT Line With SMEMA 0

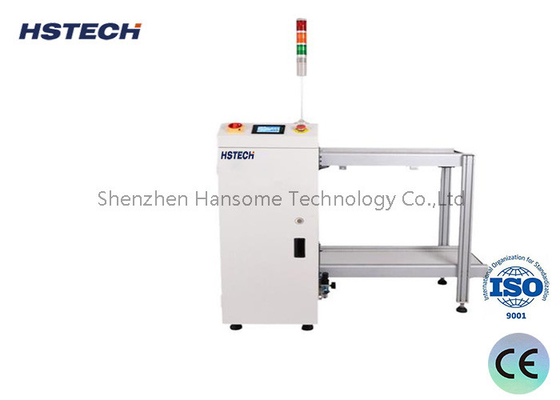

Panasonic PLC ZD Motor PCB Unloader Approx 6 Seconds SMT Line With SMEMA 2
