60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size for PCBA Depaneling

60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size for PCBA Depaneling

Brand Name:	HSTECH
Model Number:	AR-7mini
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Depaneling Router

Other Name:

Automatic PCBA Separating Machine

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Working Table Size:

50x50~260x310mm(max)

PCBA Loading Method:

Manual

Dust Collector:

Standard Configuration

Machine Body:

Stainless Steel

Packaging Details:

Wooden box

Supply Ability:

50 sets per month

Highlight:

60000RPM PCB Depaneling Router Machine

Stainless Steel Body PCB Depaneling Router Machine

50x50~410x460mm Working Size PCBA Depaneling Router

Product Description

AC380V, 50/60Hz, 3KW 50x50~410x460mm PCB Depaneling Separator Machine AR-7

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine

Technical Specifications

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindle/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programming	Vision teaching, inline programming
Milling kit	φ0.8~φ3.0 right side rotation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series

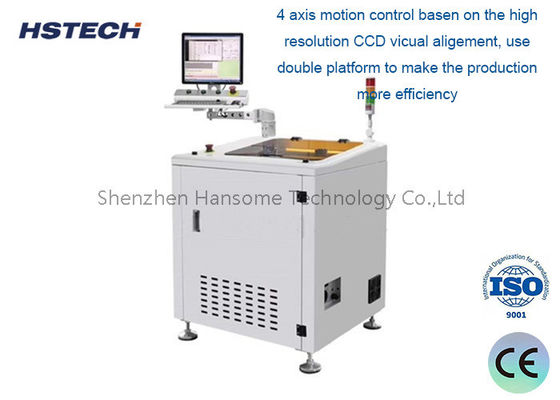

Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industrial camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Key Features

Offline automatic separating capability

Compact PCBA router design for small PCBs and space-saving requirements

Customized fixtures for precise board handling

PC and CCD visual system integration

Programming with compensation and integrated dust collection

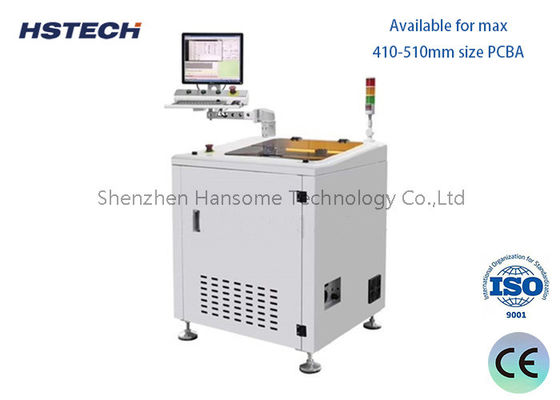

Accommodates maximum 410-510mm size PCBA

Flexible cutting for two different product types

Open platform for manual feeding/unloading with optional robotic arm compatibility

SMT Production Line Equipment

SMD Machine: Program-controlled equipment for precise component placement on designated PCB positions. Capable of mounting SOP 28pin or larger components from reels, trays, or tube packaging. Features high mounting accuracy and component diversity.

Reflow Soldering: Utilizes temperature-controlled profiles to activate solder paste or adhesive, completing the welding process between components and PCB.

Unloader: Automated board collection system using conveyor tracks to organize finished PCBs in magazines.
