60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size

60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size

Brand Name:	HSTECH
Model Number:	AR-7mini
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Depaneling Router

Other Name:

Automatic PCBA Separating Machine

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Working Table Size:

50x50~260x310mm(max)

PCBA Loading Method:

Manual

Dust Collector:

Standard Configuration

Machine Body:

Stainless Steel

Packaging Details:

Wooden box

Supply Ability:

50 sets per month

Highlight:

60000RPM PCB Depaneling Router Machine

Stainless Steel Body PCB Separator Machine

50x50~410x460mm Working Size PCB Cutting Machine

Product Description

AR-7 60000RPM PC Programming PCB Depaneling Separator Machine

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine designed for precision PCB separation with advanced vision teaching and programming capabilities.

Technical Specifications

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindle/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programming	Vision teaching, inline programming
Milling kit	φ0.8~φ3.0 right side rotation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series

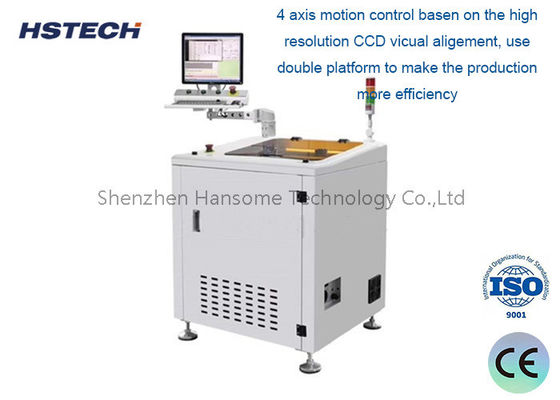

Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industrial camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Key Features

Offline automatic separating capability
Compact PCBA router design ideal for small PCBs and space-constrained environments
Customized fixtures for secure PCB holding
Integrated PC and CCD visual system for precision alignment
Programming with compensation and integrated dust collection
Accommodates PCBA sizes up to 410-510mm maximum

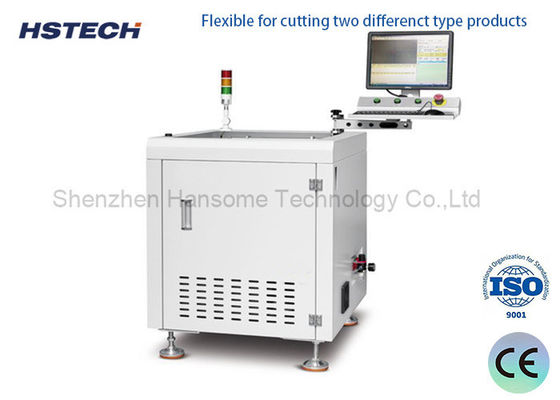

Flexible operation for cutting two different product types
Open platform design for manual feeding/unloading with optional robotic arm integration

SMT Production Line Equipment

Universal SMT Machine: Uses programmed instructions to mount components onto designated PCB positions. Capable of handling SOP 28 pin or larger components including those mounted by high-speed machines. Supports roll, disc, and tubular packaging components. Offers high precision and versatility with slightly slower installation speed compared to high-speed machines.

Reflow Soldering: Utilizes SMT solder paste or red glue with optimized temperature curves to complete soldering between paste and components.

Unloader: Transfers completed boards into magazines via transfer track system.

Optical Inspection Instrument: Automated optical inspection (AOI) system detects common welding defects through camera scanning and image comparison with qualified parameters database. Displays and marks defects for repair by maintenance personnel.
