Blade Moving 600mm Cutting Length V-cut PCB Separating Machine

Brand Name:	HSTECH
Model Number:	HS-206
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Moving PCB Separator

Other Name:

V-cut PCB Separator

Blade:

High Speed Steel

Air Pressure:

0.4-0.6Mpa

PCB Length:

Max 400mm Or 600mm

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100pcs per week

Product Description

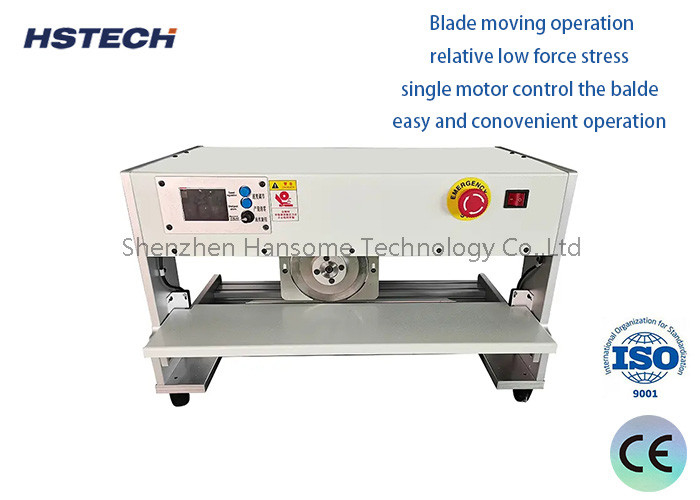

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine

Specification

Model	HS-203	HS-206
Principle	Board insert to the V-slot,blade moving cutting
Blade	Bottom linear balde, upper circular blade
Voltage	AC110V/220V 50/60Hz
Blade size(circular blade)	ϕ125mm30mm3mm
Blade size(linear blade)	420mm×65mm×6mm
Max cutting length	5~400mm	5~600mm
PCB thickness	0.8~3mm
Separation speed	300~500mm/second(adjustable)
Separation width	Best 1~200mm
Components height	≤32mm( or customized)
Power	60W
Machine dimension	710x450x420mm	900x450x420mm
Weight	55kg	75kg

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine 0
