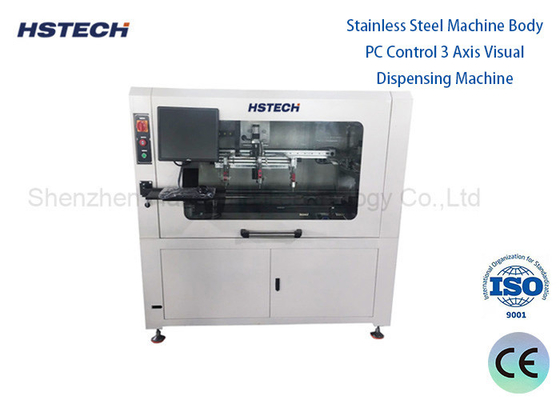

Stepper Motor Visual Glue Dispensing MachineTiming Blet for X Y Z Axis Screw

Brand Name:	HSTECH
Model Number:	HS-VD331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Visual Glue Dispensing Machine

Axis:

3 Axis

Working Range:

400mm*300mm*2

Speed:

Max 1000mm/s

Condition:

New

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Product Description

Stepper motor Visual Glue Dispensing Machine Timing Blet for X Y Z Axis Screw

Introduction

A glue dispenser, also known as a glue coater or glue potting machine, is an automated device that uses air pressure, a pump, a screw, or other power sources to squeeze fluids such as glue, solder paste, grease, and epoxy from a container and precisely apply them to a workpiece surface along a predetermined path and dosage.

Core Value: Achieve precise, efficient, and consistent fluid application, replacing unreliable manual operations.

Specification

Model	HS-VD331
Voltage	AC110V/220V,50/60Hz,Meanwell brand
Air pressure	0.5-0.7Mpa
Light source	LED source
X/Y/Z working range	400mm300mm2
XYZ speed	1000mm/s
Y platform	190*150mm
Repeat accuracy	0.02mm
Gule viscosity range	max≤5000LPS
Motor	Stepper motor
Driven system	Timing blet for X/Y, Z axis screw
Document support	CAD,CorelDRAW
Loading capacity	X/Y:10kg,Z:5kg
Linear Guide	CSK(Taiwan brand)
Photoelectric switch	(Germany brand)
Operation system	Windows
Gross weight	600kg

Main Application Areas

1. Electronics and Semiconductors

Chip Packaging: Underfill, encapsulation, and die bonding.

PCB: Conformal coating, thermal paste/silicone grease application, SMT red glue, and component mounting.

Acoustic Devices: Speaker dispensing for sealing and damping.

2. Automotive Electronics

ECU Control Units: Potting and protection.

Sensors: Sealing and protection.

Automotive Lighting: LED driver module potting, light bonding and sealing.

3. Medical Devices

Disposable Consumables: Dispensing and sealing sensors and microfluidic chips.

Device Assembly: Bonding and sealing precision instruments, requiring extremely high cleanliness and consistency.

4. Photovoltaics and Energy Storage

PV Inverters: Potting and protection.

Battery Packs: Bonding and thermal conductivity between battery cells and busbars.

5. Consumer Product Manufacturing

Smartphones/Wearables: Structural bonding, component mounting, and waterproof sealing.
