Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-D331AB |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package, with foam |
Delivery Time: | 5~7 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100pcs per week |
Product Name: | AB Glue Dispensing Machine | Other Name: | 4 Axis Glue Dispensing Machine |
---|---|---|---|
XYZ Working Range: | 300*300*100mm | XYZ Speed: | Max 300mm/s |
Glue Mixing Ratio: | 1:1-10:1 | Dispensing Precision: | Glue Amount±1%, Glue Proportion±1% |
Drive System: | Stepping Motor + Timing Belt | Repeat Accuracy: | ±0.02mm |
Highlight: | Single Platform Glue Dispensing Machine,350W Glue Dispensing Machine,300mm/s Automatic Glue Dispenser |

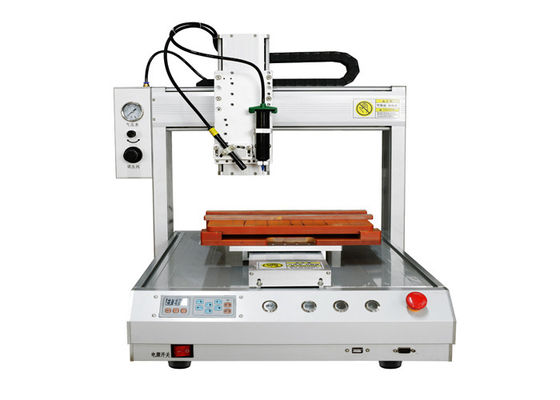

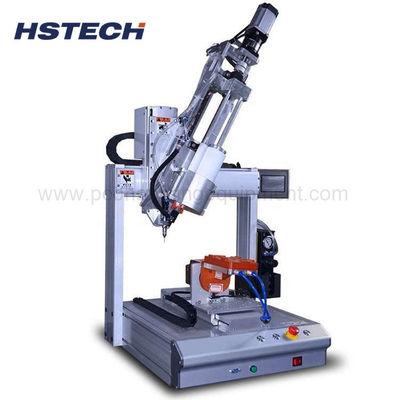

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine
Specification
ITEM | SPEC |
Glue Mixing Ratio | 1:1-10:1/Customizable |
Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |

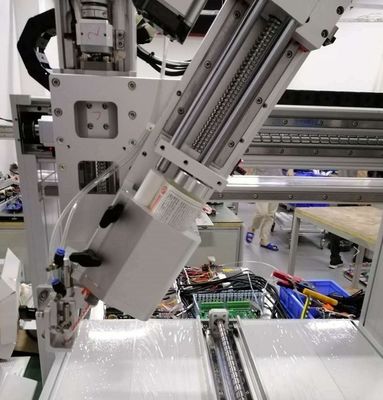

X/Y/Z Working Range | 300*300*100mm(Z axis can be rotated) |
XYZ Speed | Max 300mm/s |
Drive System | Stepping Motor + Timing Belt |
Repeatability | ±0.02mm |
Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
Potting Precision | Amount±1%, Ratio:±1% |
Operation Method | Auto |
Programming | Teach Pendant |
Control | Board card |
Leak-proof Function | Valve with Vacuum Device |
Weight | 65kg |
Dimension(L*W*H) | 716*585*645mm |
Power Supply | 220V 50-60Hz 350W |
