High Stability AC380V 8/10in 3600rpm PCB Lead Cutting Machine for Max 250mm

Brand Name:	HSTECH
Model Number:	HS-500LC
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic PCB Lead Cutting Machine

Other Name:

PCB Extra Feet Cutting Machine

Voltage:

AC220V,AC380V, 50/60Hz

Efficient PCB Size:

400*250mm

Min Lead Height:

1.0-1.5mm Min

Blade Available:

8inch, 10inch

Machine Body:

Stainless Steel

Condition:

New

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

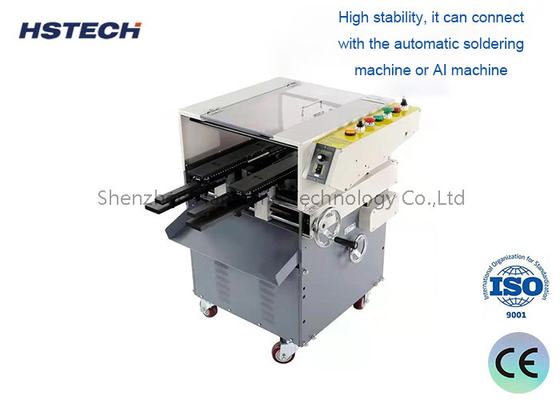

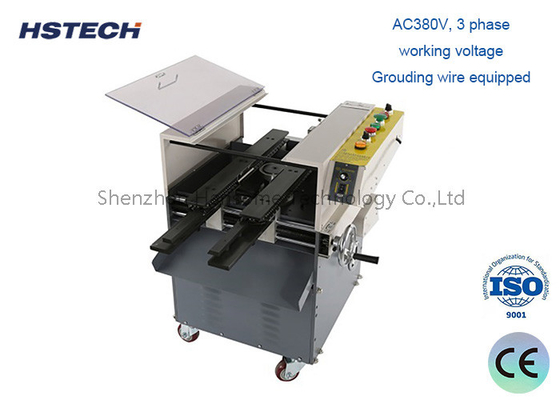

AC380V 8/10inch Blade 3600rpm Automatic PCB Lead Cutting Machine for Max 250mm PCB

Introduction

This machine is used for cutting the extra feet/lead of PCBA after wave soldering, the machine mainly including two parts, the PCB fixing, and the blade fixing. The PCB is transported by the chain, fixed by the clamper on both side, and the thimble at the buttom of the PCB. After the blade is fixed and the height setted, the PCB will be transported for the automatic lead cutting. The blade rotate fast and stability,at the same time it's very low noise and high efficiency. Warp prevention device is equipped to ensure no damage on the PCBA boards.

Specification

Model	HS-500LC
Power	AC220, 50/60Hz/380V,50/60Hz
Max. PCB size	400mm(L) x 250mm(W)
Main axis speed	4500/Min
Main axis motor	3/4 Hp
Guide rail speed	0-3 M can be adjustable
Min. lead height	1.0-1.5mm Min
Machine Demension	750600860mm(WDH)
Net Weight	115KG

High Stability AC380V 8/10in 3600rpm PCB Lead Cutting Machine for Max 250mm 0

High Stability AC380V 8/10in 3600rpm PCB Lead Cutting Machine for Max 250mm 1

High Stability AC380V 8/10in 3600rpm PCB Lead Cutting Machine for Max 250mm 2

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
