products details

Home Products

High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System

Name: High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-600
Price: 10,500.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-600
MOQ:	1 set
Price:	9000~12000usd/set
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Product Name:

SMT Stencil Cleaning Machine

Other Name:

Screen Printer Stencil Cleaner

Cleaning:

SUS304 Stainless Steel

Stencil Size:

Standard Size 740*740*40mm, Customized Is Available

Cleaning Obejects:

Solder Paste, Red Glue, Flux, Sosin,etc.

Cleaning Solvent:

Alcohol

Drying Function:

Yes

Machine Dimension:

980MM(L)*700MM(W)*1730MM(H)

Packaging Details:

Wooden case

Supply Ability:

30 sets per month

Product Description

Data sheet of Pneumatic stencil cleaner HS-600.pdf...

Automated SMT Stencil Cleaner w/ 3-Level Filter System

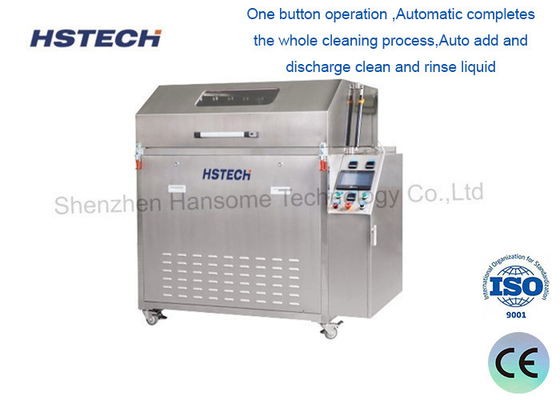

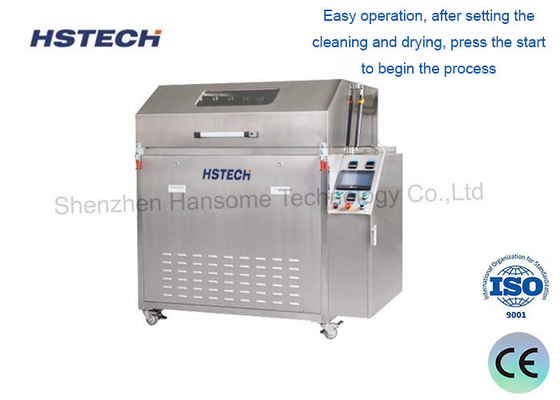

Machine introduction

This machine (Model:HS-600) we call it pneumatic SMT stencil cleaning machine, it's a automatic stencil cleaning equipment, with the cleaning and drying function combined. It's used in the SMT assembly process, designed for automatic cleaning solder paste steel mesh, red glue steel mesh, cooper mesh, resin screen,etc. It use the alcohol as the cleaning solvent, equiped with the 3 level filter system to achieve the solvent repeatly using, save the solvent consumption. This machine use the spray cleaning method for cleaning,powered by the air compressor, use the pump siphon the solvent and drive the spraying cleaning bars for double sides cleaning, the cleaning performance is very good.

Specification

Model	HS-600
Power supply	Compressor air
Application	stencil,metal mesh, steel mesh,cooper screen,gule screen
Stencil size	standard 29inch and below,74074040mm
Cleaning solvent	Alcohol
Cleaning liquid capacity	Max 45L,Min20L
Best cleaning fluid using volume	40L
Liquid consumption	120ml/pc
Cleaning method	Rotary double side pressure injection and high pressure air
Cleaning time	2~4 Min Stencil and Copper Screen
Drying time	2~5 Min
External air supply	0.4Mpa~0.6Mpa
Consumer air quantity	400~600L/Min
Air outlet size	φ125*25mm
Solder dross filter mode	3 level filter(10um,5um,1um)
Weight	305kg
Machine dimension	980MM(L)700MM(W)1730MM(H)

Cleaning performance

High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System 0

High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System 1

High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System 2

High Quality SMT Stencil Cleaner Model HS-600 with Alcohol Solvent & 3 Level Filter System 3

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
