| Product Name: | 4 Axis Robotic Soldering Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

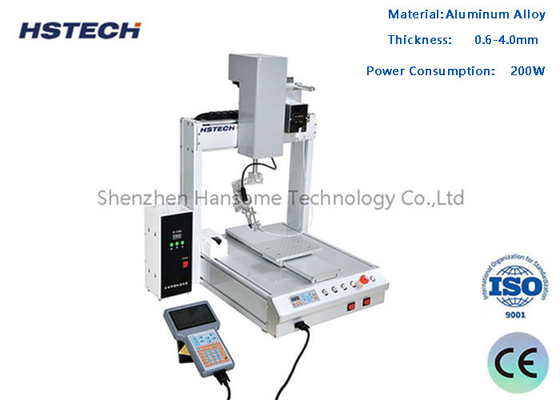

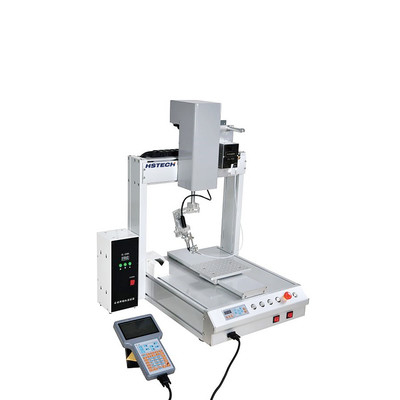

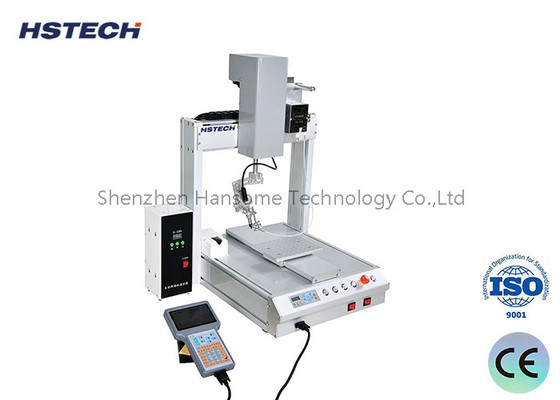

High Precision 360° Constant Control System Soldering Machine 4 Axis Robotic Soldering Machine
Machine Introduction
This automatic soldering machine is 4 axis operation, single soldering head with rotation, it's mostly used in the electronics manufacturing industry to achieve blind soldering which in reflow soldering and wave soldering can not do, It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process, also widely used in PCB soldering wire, charger plug,soldering,connector plug,DC terminal,LED strip light soldering and other fields.
Technical Details
| Model | HS-S331R |
| X/Y/Z Working Range | 300*300*100mm |
| R Axis | 360° |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeat accuracy | ±0.02mm |
| Operation Method | Auto |
| Programming | Manual programming(Teach Pendant) |
| Control system | Constant control system |
| Control | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File Storage Space | Hand held box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Weight | 85kg |
| Dimension(L*W*H) | 516*585*800mm |
| Power Supply | 220V 50-60Hz, 350W |
| Temperature control range | 0-550C° |
| Iron Tip Cleaning | Air cleaning/Pneumatic |
| External Interface | USB + RS232 |
| Soldering Method | Point Soldering/Drag Soldering |
| Working Temperature/ | 5-40C° |
| Humidity | /20-90% RH |
Features
1. Flexible soldering method with spot welding, drag welding and other functions;
2. The mechanical arm of the equipment is aluminum profile, no deformation, no rust, stable operation;
3. The device writing work program can perform point-to-point, point-to-block copying and shorten the programming time;
4. The device has an automatic cleaning function;
5. Multiple axis linkage robots, all driven by precision stepping motors.
Machine detail
Application
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.
