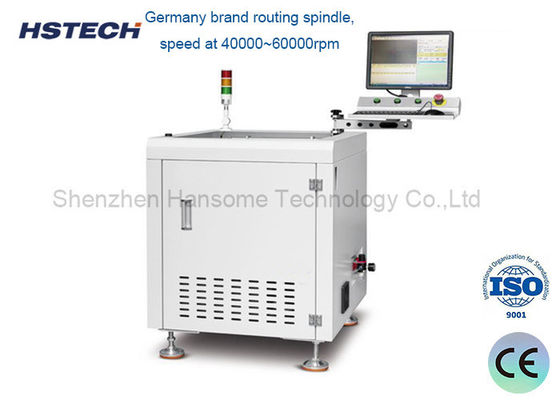

Single Platform 60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size

Single Platform 60000RPM Stainless Steel Body PCB Depaneling Router Machine with 50x50~410x460mm Working Size

Brand Name:	HSTECH
Model Number:	AR-7mini
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Depaneling Router

Other Name:

Automatic PCBA Separating Machine

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Working Table Size:

50x50~260x310mm(max)

PCBA Loading Method:

Manual

Dust Collector:

Standard Configuration

Machine Body:

Stainless Steel

Packaging Details:

Wooden box

Supply Ability:

50 sets per month

Highlight:

60000RPM PCB Depaneling Router Machine

Stainless Steel Body PCB Separator Machine

50x50~410x460mm Working Size PCB Cutting Machine

Product Description

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine

High-precision PCB depaneling separator machine with advanced PC programming and vision teaching system for efficient board separation.

Technical Specifications

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindle/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programming	Vision teaching, inline programming
Milling kit	φ0.8~φ3.0 right side rotation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series
Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industrial camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Key Features

Offline automatic separating capability
Compact PCBA router design ideal for small PCBs and space-constrained facilities
Customized fixtures for secure board handling
PC and CCD visual system integration
Programming with compensation and integrated dust collection
Accommodates maximum 410-510mm size PCBA
Flexible operation for cutting two different product types
Open platform design for manual feeding/unloading with optional robotic arm integration

Product Images

About Our Company

Shenzhen Hansome Technology Co., Ltd (HSTECH) is a professional SMT board handling equipment manufacturer specializing in Loaders, Unloaders, Buffers, Conveyors, and related equipment. As a high-tech enterprise with independent intellectual property rights, we focus on research, development, production, and sales of SMT/THT production line board handling solutions.

Beyond complete SMT machines and equipment, we also supply essential machine parts including Feeders, Nozzles, PCB board turnover carts, SMT grease, Solder paste mixers, SMD counters, Laser Sensors, Filters, KIC thermal profilers, Servo Motors, and more.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
