Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting

Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting

Brand Name:	HSTECH
Model Number:	HS-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Product Name:

Inline V-cut PCB Separating Machine

Other Name:

PCB Depaneling Machine

Circular Blade Size:

Φ125*30*3mm

Linear Blade Size:

420*45*6mm

Cutting Thickness:

High Speed Steel Cutting Tool

Application:

Tic Tac Toe Connected PCB Panel

Working Voltage:

AC220V,50/60Hz

Warranty Year:

1 Year

Packaging Details:

Wooden case with foam protective

Supply Ability:

100pcs per month

Product Description

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine

Description

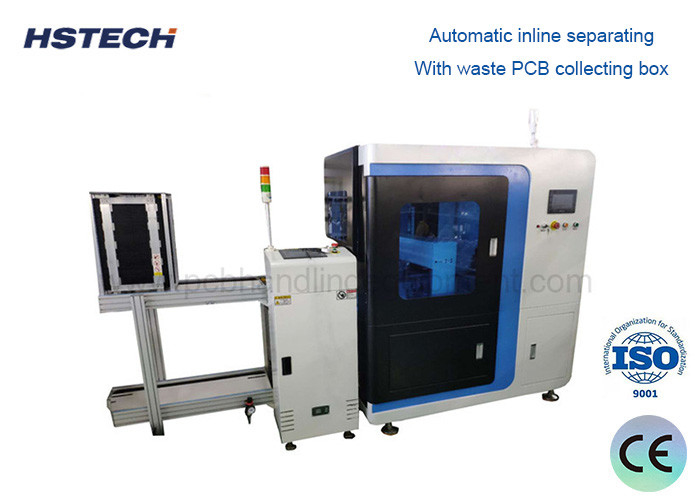

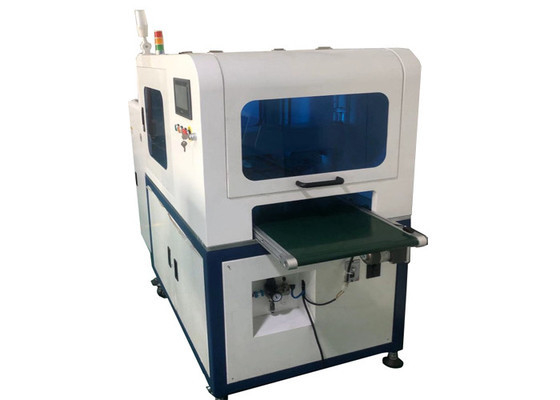

This PCB separating machine is a full automatic inline V-cut type PCB separating machine, it's use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for X axis and Y axis automatic Separating with linear blade and circular blade combined.

Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.

Features

1, Automatic inline separating.

2, Automatic feeding with PCB loader, automatic X axis and Y axis direction vcut separating.

3, With waste PCB collecting box.

4, Transporting belt for collecting after separated.

5, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.

6, Save the labour for manual loading the PCBs, much efficiency and more precision.

Specification

Model	HS-F550
Efficiency cutting length	0-500mm
Separating width	≤ 300mm
Circular blade size	Φ125303mm
Linear blade size	420456mm
Blade thickness	0.3-0.6mm
Separating speed	Adjustable
Separating thickness	≤2mm
Blade material	Overseas high quality steel blade
Production ability	100,000pcs per day
Voltage	AC110V/220V
Air pressure	0.5-0.8Mpa
Power	1.1KW
Machine dimension	15005501550mm
Weight	325KG

Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting 0

Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting 1

Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting 2

Highly Efficient PCB Depaneling Machine with Auto Loading and Collecting 3
