High Precision Automatic Soldering Robot with Automatic Cleaning Function

High Precision Automatic Soldering Robot with Automatic Cleaning Function

Brand Name:	HSTECH
Model Number:	HS-S331R/HS-DS331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Soldering Machine

Axis:

4 Axis

Platform:

Single

Programming:

Manual With Teaching Box

Motor:

Stepper Motor

Linear Guide:

Hiwin Brand

Voltage:

AC110V/220V

Warranty:

1 Year

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Product Description

High Precision Automatic Soldering Robot with Automatic Cleaning Function

Introduction

This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.

Application

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices

4, precision machinery/electrical products :VTR.
5. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

Specification

Model	HS-S331R/HS-DS331R
Voltage	AC110V/220V,50/60Hz
X/Y/Z working range	300300100mm
R axis	360 degree
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD,CorelDRAW
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	48kg
Machine dimension	520585800mm

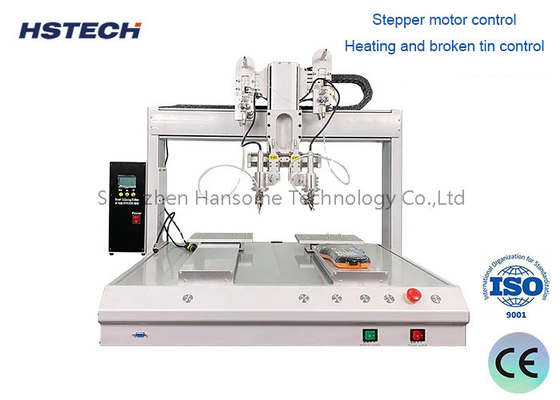

High Precision Automatic Soldering Robot with Automatic Cleaning Function 0

High Precision Automatic Soldering Robot with Automatic Cleaning Function 1

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
