Save and Import Depaneling Data Servo Motor Guillotine PCB Depaneling System

Brand Name:	HSTECH
Model Number:	HS-A310
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	200sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Auto Guillotine PCB Depanelizer

Other Name:

Auto Guillotine PCB Separator

Voltage:

AC220V/110V

Driven Motor:

Step Motor And Servo Motor

Max Separating Length:

1-240mm

Fiting Board Width:

50-150mm

Feeding:

Automatic

Separating:

Automatic

Packaging Details:

Wooden pacakge

Supply Ability:

200sets per month

Product Description

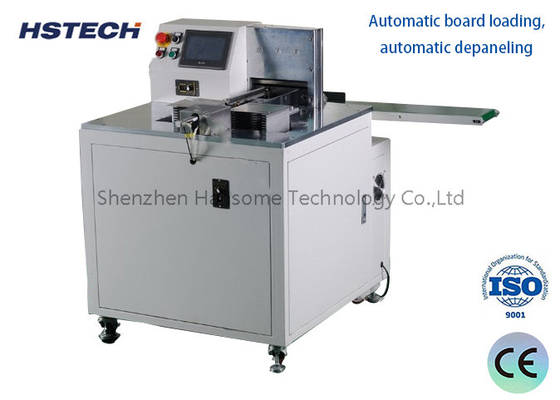

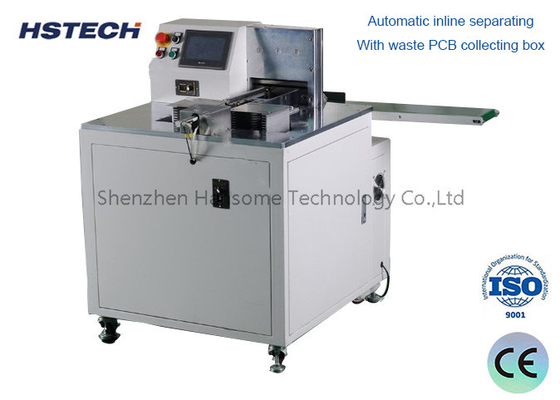

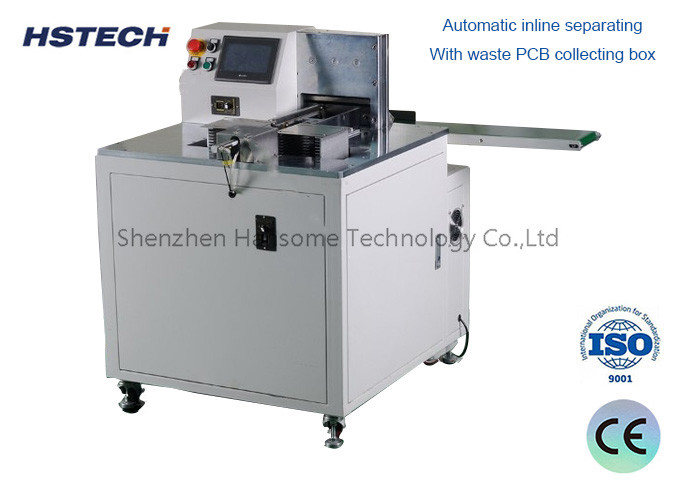

Max 240mm Length Servo Motor Automatic Guillotine Type PCB Depaneling Machine

Introduction

This machine is a guillotine type PCB depaneling machine, but it use the track to achieve automatic PCB board loading instead of the manual board loading, so it's a automatic machine, This machine use the human interface operating system, easy and convenient operation. It's a more efficient guollitine type board depaneling machine.

Features

1, The whole machine body is made of stainless steel, stable and durable.

2, The machine adopt two pcs linear blade, the balde length is 240mm, and board width is 50-150mm.
3, Human interface operating system.

4, Automatic board loading, automatic depaneling.

5, The machine can save the depaneling data, convenient for save and import different board parameters.

6, Vertical stand structure, easy to move.

7, Equipped with separating quantity counter.

8, Loading part using the servo motor, board fixing use the step motor.

Specification

Product name	Automatic guillotine PCB depaneling machine
Model	HS-A310
Part-up height	Max 35mm
Part-down height	Max 20mm
Air supply	5-7kgf/c㎡
Production ability	1800-4000pcs/H
Voltage	AC220V/110V,50/60Hz
Separating width	1-240mm
Blade	Two pcs linear guillotine blade
Blade adjustment distance	Upper and down 3mm
Separating speed	1-300mm/s
V-cut thickness	0.6-2mm
Machine size	9008001100mm
Weight	150kg

Save and Import Depaneling Data Servo Motor Guillotine PCB Depaneling System 0

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
