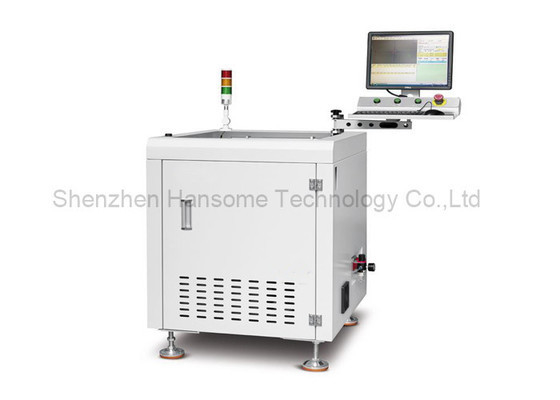

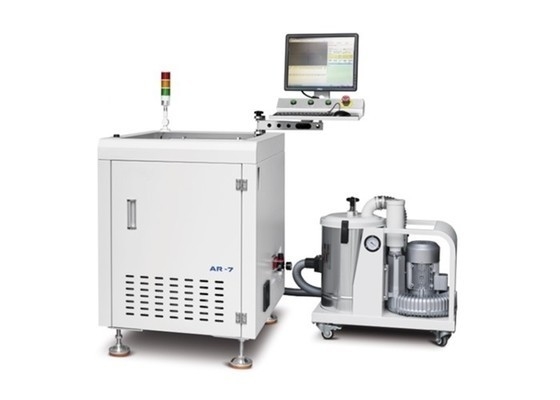

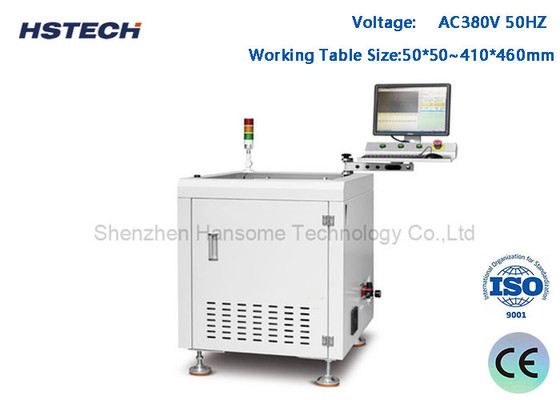

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material AR-7

Name: Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material AR-7
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: AR-7
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	AR-7
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mini Offline PCBA Router Machine

Material:

Sheet Metal

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Communication:

SMEMA

Working Table Size:

50*50~410*460mm

PCBA Loading Method:

Manual

Dust Collector:

Bottom Collection

Packaging Details:

Wooden case, foam protection

Supply Ability:

50 sets per month

Product Description

Single / Double Work Platform Manual Feeding Offline Mini PCB Router Machine

Features
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two differenct type products.
8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).

Specification

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindel/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programing	Visioin teaching, inline programing
Milling kit	φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series
Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industril camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Single / Double Work Platform Manual Feeding Mini Offline PCBA Router Machine Sheet Metal Material AR-7 0
