Double Y Working Platform 5 Axis Floor-standing Automatic Soldering Robot with Hiwin Linear Guide for PCB Soldering

Brand Name:	HSTECH
Model Number:	HS-FS5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Floor-standing Automatic Soldering Robot

Machine Body:

Metal Structure

Iron Tin:

Single

Platform:

Double Y Working Platform

Linear Guide:

Hiwin

Usage:

Pcb Soldeing,Welding,Circuit Board Soldering

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Double Y Working Platform Automatic Soldering Robot

5 Axis Floor-standing Soldering Robot

Hiwin Linear Guide PCB Soldering Machine

Product Description

Double Y Working Platform Floor-standing Automatic Soldering Robot

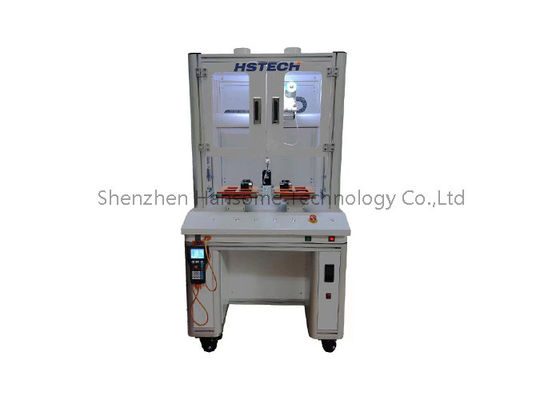

This floor-standing automatic soldering robot offers enhanced convenience and flexibility compared to desktop models, featuring a double Y working platform design for efficient PCB soldering operations.

Product Overview

The machine utilizes a 5-axis working system with double soldering platforms, providing a single soldering iron/tip moving range of 500x300x300x100mm. Ideal for various PCBA welding applications, this automatic soldering robot replaces manual welding to significantly improve work efficiency and welding quality.

Key Features

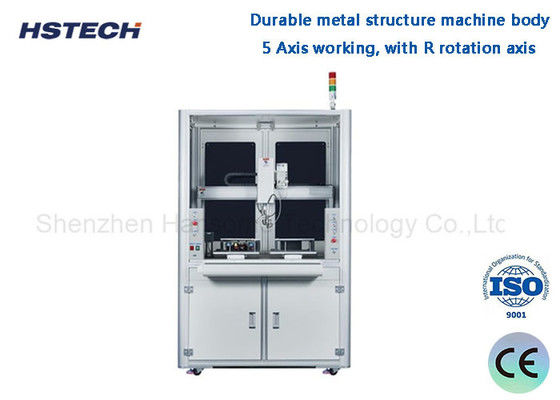

Durable metal structure machine body with floor-standing design and double platform operation
5-axis working system including R rotation axis
500×300×300mm traveling distance (customizable to customer requirements)
Single soldering iron with flexible moving range options; customizable to double or triple soldering irons
Supports multiple welding methods including point welding and drag welding
Teach pendant programming with manual welding point setting; supports CAD drawing import
High-quality Taiwan Hiwin brand Linear Guide for precise movement
Stepper motor and timing belt control system

Technical Specifications

Model	HS-S5331R	HS-S6331R
Voltage	AC110V/220V, 50/60Hz
X/Y1/Y2/Z Working Range	500×300×300×100mm	600×300×300×100mm
R Axis	360°
X/Y/Z Moving Speed	Max 300mm/s
Driven System	Stepper motor, timing belt
Linear Guide	Taiwan brand high precision guide
Repeat Accuracy	±0.02mm
Programming	Teach pendant
Control System	Control board
Program Storage	1,000 sets of processing data; single file up to 3M storage space (5,000 processing points)
File Storage Space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document Support	CAD
Iron Tin Cleaning	Air cleaning/pneumatic
External Interface	USB+RS232
Soldering Method	Point/drag soldering
Weight	65kg	70kg
Machine Dimension	715×585×800mm	815×685×800mm

Main Machine Configuration

Double soldering iron, double Y working platform
Handheld teach pendant programmer
Heating controller
Broken tin controller
Solder pen assembly
Welding tip
Tin out components
Cleaning box
