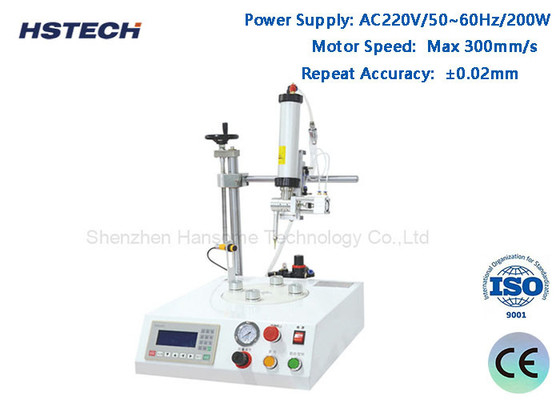

4 Rotary Working Stations Text Screen Control LED Bulb Glue Dispenser with ±0.02mm Repeat Accuracy

Name: 4 Rotary Working Stations Text Screen Control LED Bulb Glue Dispenser with ±0.02mm Repeat Accuracy
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-BD4
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-BD4
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

LED Bulb Glue Dispenser

Power Supply:

AC220V/50~60Hz/200W

Max Dispensing Diameter:

160mm(two Station),110mm(four Station)

Motor Speed:

Max 300mm/s

Repeat Accuracy:

±0.02mm

Warranty:

1 Year

Application:

LED Bulb, LED Par Light

Control Method:

Text Screen

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

4 Rotary Working Stations Glue Dispensing Machine

Text Screen Control LED Bulb Glue Dispenser

±0.02mm Repeat Accuracy Automatic Glue Dispenser

Product Description

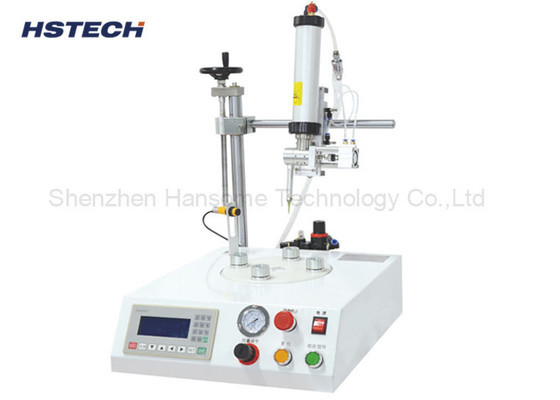

4 Rotary Working Stations Text Screen Automatic LED Bulb Glue Dispenser HS-BD4

This advanced LED bulb glue dispensing machine is designed for precise glue application on LED bulb bases and PAR light components, ensuring secure connection with lamp housings.

Application

The HS-BD4 automatic glue dispenser applies adhesive to LED bulb bases and PAR light components, creating reliable bonds between electrical components and lamp housings. The four-station rotary design with 90-degree distribution on the revolution disc provides efficient, continuous operation.

Technical Specifications

Model	HS-BD4
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	160mm (two station), 110mm (four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm532mm532mm
Weight	35Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0~40℃, Humidity: 20~90%

Machine Features

Four work stations in continuous cycle operation with designed capacity of 1000-1500 pieces per hour
Integrated work piece detection system for intelligent gluing decisions
Flexible gluing patterns including full circle, single point, or segmented arc configurations
Dual operating modes supporting both four-station and two-station workflows
User-friendly touch screen interface with intuitive button controls for easy operation
Customizable settings optimized for different adhesive types and application requirements

Packaging & Operation

Precision cutting distance comparison

Automated operation demonstration

Operational efficiency comparison
