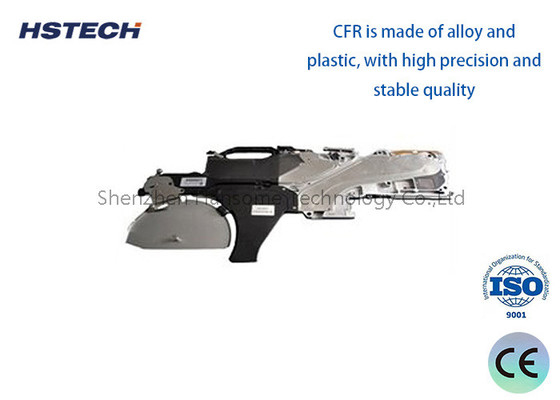

KJK-M1300-012 YAMAHA SMT Feeder for Feeding SMD Components

KJK-M1300-012 YAMAHA SMT Feeder for Feeding SMD Components​

Introduction

SMT Feeder is a key accessory of SMT mounter, which is used to transport electronic components (such as resistors, capacitors, ICs, etc.) from the tape to the pickup position of the head in a stable and precise manner. Its performance directly affects the efficiency and accuracy of the mounter.

Specification

 Tape Feeder

Applicable Components: Resistors, Capacitors, Inductors, Small-size ICs, etc. (Tape packing components).

Common width:

8mm Feeder: 0402, 0603 and other small components.

12mm Feeder: 0805, 1206 and other slightly larger components.

16mm/24mm/32mm Feeder: larger components or ICs (e.g. SOP, QFP).

Type:

Electric Feeder: high precision and high speed, suitable for high speed mounter (e.g. Fuji NXT, Siemens HS).

Pneumatic Feeder: low cost, suitable for low and medium speed mounter (e.g. Yamaha, JUKI)

YAMAHA Feeder Part Number

YAMAHA CL 8*2mm Feeders for 0201 KW1-M1500-030
YAMAHA CL 8*2mm Feeders for 0402 KW1-M1300-00X
YAMAHA CL 8*4mm Feeders KW1-M1100-000
YAMAHA CL 12mm Feeders KW1-M2200-100
YAMAHA CL 16mm Feeders KW1-M3200-100
YAMAHA CL 24mm Feeders KW1-M4500-014
YAMAHA CL 32mm Feeders KW1-M5500-000
YAMAHA CL 44mm Feeders KW1-M6500-000
YAMAHA CL 56mm Feeders KW1-M7500-000
YAMAHA CL 72mm Feeders KW1-M8500-000
YAMAHA FEEDER FSII8*2MM KJK-M1500-000
YAMAHA FEEDER FSII8*4MM KJK-M1500-011
YAMAHA FEEDER FT8*2MM KJK-M1500-010
YAMAHA FEEDER FT8*4 MM KJW-M1200-023
YAMAHA FEEDER FS2 8*4MM KJK-M1500-013
YAMAHA FEEDER SS 8MM KHJ-MC100-000
YAMAHA FEEDER SS12 MM KHJ-MC200-000
YAMAHA FEEDER SS16 MM KHJ-MC300-000
YAMAHA FEEDER SS 24MM KHJ-MC400-000
YAMAHA FEEDER SS32MM KHJ-MC500-001

YAMAHA FEEDER SS44MM KHJ-MC600-000

YAMAHA FEEDER SS56MM KHJ-MC700-000

YAMAHA FEEDER SS72MM KHJ-MC800-000
