Double Circular Blade V Cut Fiber Glass Board Separator

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-F150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Fiber Glass Board Separator	Application:	Fiber Glass Board, Paper Board, FR-4 Board
Blade:	Double Circular Blade	Blade Material:	Imported SHD61 High Speed Steel
Quality:	Durable	Warranty:	1 Years(exclude The Balde)

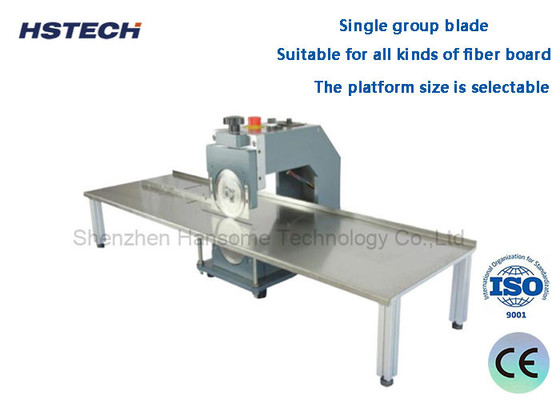

Double Circular Blade V Cut Fiber Glass Board Separator

This machine use top and bottom circular blade separating, suitable for fiber glass board and paper base board, which with lower hardness board like aluminum and copper board.

Features

1, Single group blade, upper and lower double circular blade rolling design, fast separating speed.
2. Suitable for all kinds of fiber board and paper base boards with slot, but not suitable for high hardness aluminum board.
3, Unique bar side design, it is convenient to divide the edge of the board of different width.
4, The platform size is selectable, with 1.2 meters and 2.4 meters options.
5, Precision blade adjustment, can quickly and easily adjust the blade, to achieve best separating effect.
6, Special design blade, more durable.
7, Easy to operation,operator can be used without training.

Specification

Model			HS-F150
Production name			Double blade fiber glass separator
Machine dimension			425mm×265mm×445mm
Platform dimension			1200(2400)mm×360mm×300mm
Blade dimension			Circular blade ϕ125x3mm
Separating thickness			0.8~3mm, 1/3 of the board thickness
Voltage			AC220V/110V, 50/60Hz
Air supply			No
Machine power			60W
Separating speed			1mm-880mm/s
Separating length			50mm-unlimited
Separating width			5-100mm best, single board width,not whole pin board width
Suitable boards			Fiber glass board, paper base board
Weight			Around 34kg
