High Wear Resistance Remote Control Automatic Soldering Robot with Mounting Accuracy ±0.01mm for Inline THT DIP AOI After Wave Soldering

Brand Name:	HSTECH
Model Number:	AIS300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Inline THT DIP AOI After Wave Soldering

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Application:

Electronic Assembly

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

High Wear Resistance Automatic Soldering Robot

Remote Control Inline THT DIP AOI

Mounting Accuracy ±0.01mm Wave Soldering Machine

Product Description

High Wear Resistance Remote Control Inline THT DIP AOI After Wave Soldering

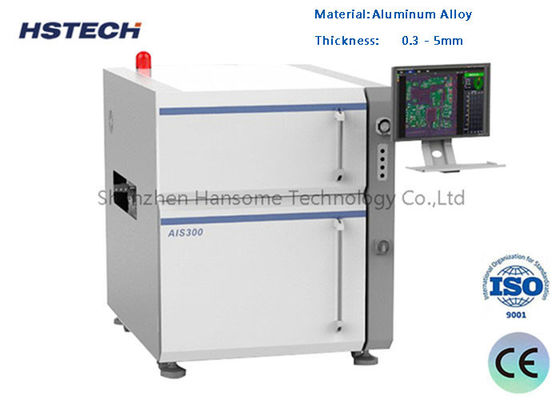

Advanced automated optical inspection system designed for post-wave soldering processes in THT (Through-Hole Technology) DIP (Dual In-line Package) production lines.

Technical Specifications

Model	AIS300	AIS301
PCB Size	50x50mm~430x380mm	50x50mm~350x350mm
Thickness	0.3~7.0mm
Warping extent	<4mm
Component height	Top 150mm, bottom 25mm
Camera	5MP, color, CCD
Light source	RGB
FOV	45*37mm
Resolution	20um
Inspection Speed	0.23sec/fov	0.25sec/fov
Operation system	Ubuntu 14.04 LTD 64bit
Industrial PC	CPU Intel i5, Independent Graphics Card, 12G DDR, 256SSD
Display	22 inch FHD LCD
Motion	High accuracy linear actuator
Power supply	AC220V, 1KW
Air pressure	>0.5Mpa
Dimension (LHW)	110016301350mm	110012801300mm
Net Weight	800kg	700kg

Inspection Capabilities

Mounting Components Defects: Missing, rolling, offset, damage, skew, redundant, dirty
Solder Defects: Excess, insufficient, bridge, no foot, missing solder, non-wetting
Additional Functions: Bar-code, QR code, OCR recognition

Advanced Features

Core Algorithm: Convolutional Neural Network Algorithm with human-like inspection capabilities
High Wear Resistance: Durable construction for industrial environments
Large Inspection Area: High compatibility with various PCB sizes
High Inspection Rate: Low false positive rate for reliable performance
Stable Platform: Marble base for enhanced stability
Precision Motion: Dual XY linear actuators for high speed and accuracy
Advanced Training: Supports user self-training models with super large sample sets

Applications

This inline THT AOI system is used after wave soldering machines in DIP production lines to correct wrong units, reduce repairs and time, and efficiently improve passing rates. Widely used for inspecting TV mainboards, PC mainboards, power boards, industrial control boards, mini household electronic appliances, and other PCB assemblies.
