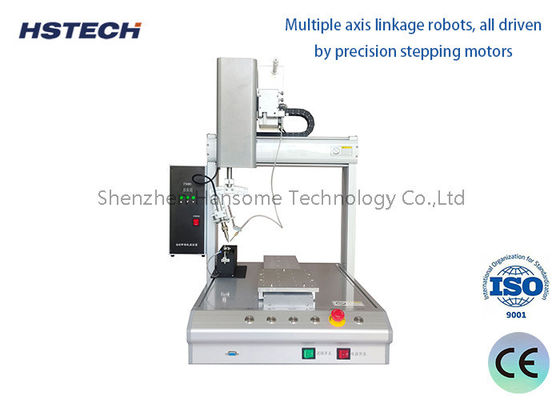

4-Axis Automatic Soldering Robot with 300*300mm Working Range and Stepper Motor Driven for Precision Soldering

Name: 4-Axis Automatic Soldering Robot with 300*300mm Working Range and Stepper Motor Driven for Precision Soldering
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-S331R/HS-DS331R
Price: 3,450.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-S331R/HS-DS331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Soldering Machine

Axis:

4 Axis

Platform:

Single

Programming:

Manual With Teaching Box

Motor:

Stepper Motor

Linear Guide:

Hiwin Brand

Voltage:

AC110V/220V

Warranty:

1 Year

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Highlight:

4-Axis Movement Automatic Soldering Robot

300*300mm Working Range Desktop Soldering Machine

Stepper Motor Driven 4-Axis Soldering Robot

Product Description

Automatic 4-Axis Soldering Robot with High Precision

Advanced Desktop Soldering Solution

This high-precision automatic desktop soldering machine features programmable operation via teaching box, utilizing quality stepper motors and timing belt drive systems. Available in single or double workstation configurations with standard 300×300mm travel range, customizable to meet specific product requirements.

Key Features

Automatic cleaning system and iron head alignment
High precision stepper motor drive with timing belt

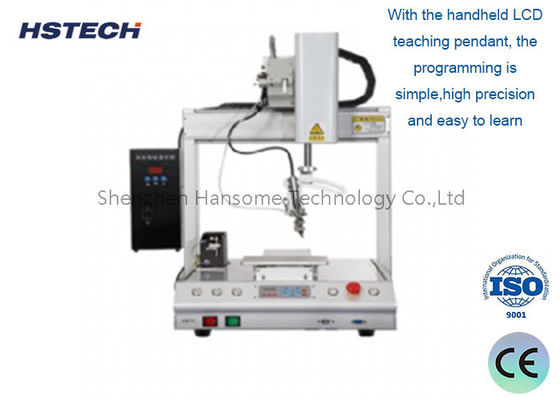

Teach pendant programming interface
±0.02mm repeat accuracy
Point and drag soldering capabilities
Extensive program storage capacity
Support for CAD and CorelDRAW file formats

Application Industries

Semiconductor Products: LSI, IC, CSP, BGA components
Optical Equipment: High-end camera systems
Consumer Electronics: DVD players, audio equipment, automotive navigation
Medical Devices and Precision Instruments
General Consumer Goods: Toys, musical instruments, batteries

Technical Specifications

Model	HS-S331R/HS-DS331R
Voltage	AC110V/220V, 50/60Hz
X/Y/Z Working Range	300×300×100mm
R Axis	360 degree rotation
X/Y/Z Moving Speed	Maximum 300mm/s
Driven System	Stepper motor with timing belt
Linear Guide	Taiwan brand high precision guide
Repeat Accuracy	±0.02mm
Programming	Teach pendant
Control System	Control board
Program Storage	1,000 sets of processing data, single file up to 3M storage space (5,000 processing points)
File Storage Space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document Support	CAD, CorelDRAW
Iron Tin Cleaning	Air cleaning/pneumatic
External Interface	USB + RS232
Soldering Method	Point/Drag soldering
Weight	48kg
Machine Dimension	520×585×800mm

About Shenzhen Hansome Technology Co., Ltd.

Professional manufacturer of SMT board handling equipment including loaders, unloaders, buffer conveyors, soldering machines, screw fastening machines, and PCB depaneling machines. As a high-tech enterprise with independent intellectual property rights, we specialize in research, development, production, and sales of SMT/THT production line board handling equipment.

With over 10 years of professional SMT industry experience, we maintain strict production, inspection, debugging, and packaging processes. Our commitment includes comprehensive pre-sales, in-sales, and after-sales services supported by professional quality control personnel ensuring all equipment undergoes thorough testing and debugging before shipment.
