Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System

Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System

Brand Name:	HSTECH
Model Number:	CM-610
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, D/P
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCBA Router Machine

Feeding:

Drawer Feeding

Working Platform:

Double,can Combined As One Platform

Function:

PCBA Pin Board Separating

Material:

Sheet Matel

Color:

Orange,gray

Packaging Details:

Wooden case, foam protection

Supply Ability:

50 sets per month

Product Description

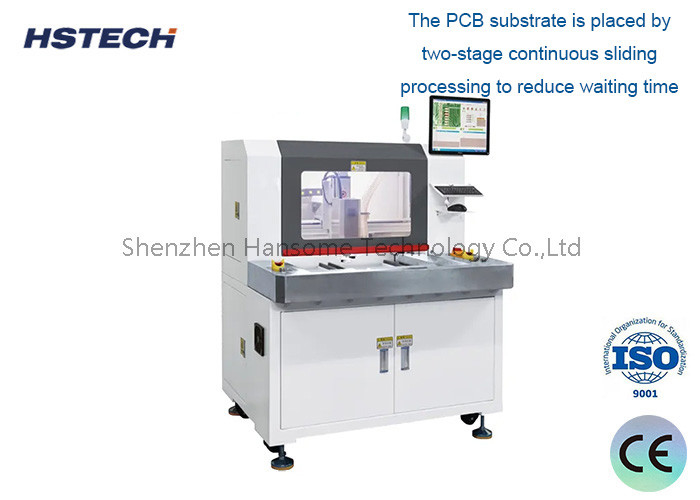

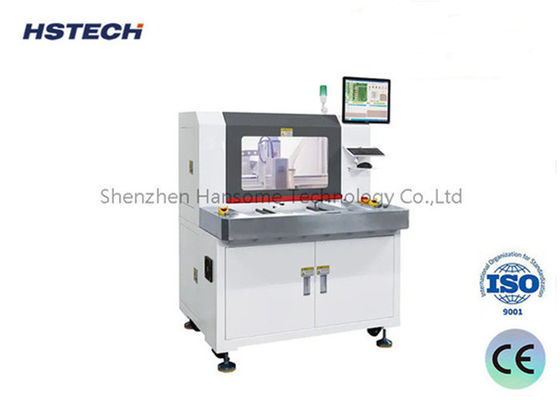

Drawer Feeding Automatic Depaneling PCB Router Machine with Dust Collector

Specification

Model	CM-610	CM-610max
Max PCB size	350x350mm	450x450mm
Min PCB size	5x5mm
PCB thickness	0.4~6mm
Work table height	850mm
Loading mode	Manual feeding and release
PCB positioning	Magnetic thimble or jig
Cutting spindle/speed	Sycotec,made in Germany,5000-60000rpm
Cooling type	Self cooled type
Break knife inspection	Yes
Cutting speed	1-100mm/s
Cutting accuracy	±0.05mm
Milling kit	φ0.8~φ3.0 right rotation,shank tungsten steel
Repeating positioning accuracy	±0.02mm
Coordinate moving speed	1000mm/s
Precedure programming	GERBER drawing import or editing through visual system
Air supply	5-8KG/cm³
Power supply	AC380V±5%,50/60Hz,3KW
Machine dimension	125010001650mm	135011001650
Machine weight	Appro 900kg

Machine dimension

Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System 0

Machine details

Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.

Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System 1

Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)

Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System 2

Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.

Drawer Feeding PCB Router Machine with Dust Collector and Intergrated Cutting System 3

Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.Our products have been exported to Europe,America,East Asia,South Asia, the middle East Asia, Africaareas and have good feedbacks.There are many customers who repurchase fromus.

Our company is committed to establishing longterm friendly cooperative relationswith domestic and foreign clients on the basis of mutual benefit.
