| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | CM-610 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, foam protection |
| Delivery Time: | 20~30 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 50 sets per month |
| Product Name: | PCBA Router Machine | Feeding: | Drawer Feeding |
|---|---|---|---|
| Working Platform: | Double,can Combined As One Platform | Function: | PCBA Pin Board Separating |
| Material: | Sheet Matel | Color: | Orange,gray |
Single Platform Offline PCB Router Auto Depaneling PCBA Cutting Machine
Description

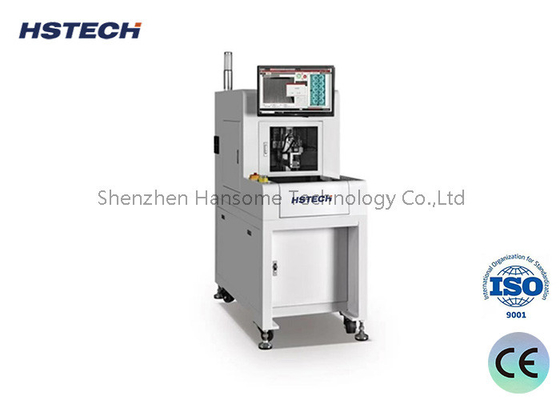

This machine is a floor standing automatic PCBA routing machine, it’s single platform operation, using PC for programming, automatic bottom routing and bottom dust collecting.The machine using high speed routing spindle, fix the PCBA with jig, to separate the stamp hole, curve PCB, and other irregular connected PCBs.
Features
1.Chinese/English software operation system.

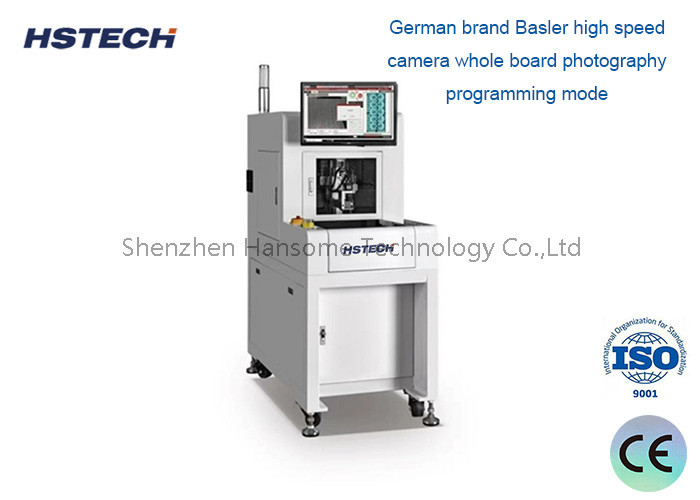

2.German brand Basler high speed camera whole board photography programming mode. Remote control and debugging can be realized.
3.Equipped with auto routing tool(bit) changing,break tool detection, tool height correction function.
4.Single table work, can also be used in combination of two machines, while the equipment can be unmanned operation with a robot, greatly improving production efficiency.
Application
Full vision intelligent router is suitable for consumer electronics, home electronics, automotive electronics and other related multi-board PCB cutting operation.
Specifications
| Machine model | RT330 |
| PCB cuttint size | 310*360MM |
| Cutting object | V-groove,stamp hole,circular point,etc. |
| Cutting table | Single table |
| Cutting accuracy | ±0.08MM |
| Repeat accuracy | ±0.015MM |
| Max axis moving speed | X,Y1,Y2:1000mm/s,Z axis:800mm/s |
| Spindle | Chines brand |
| Tool change mode | Manual tool change |
| Spindle routing speed | MAX:60000rpm |
| Tool detection | Automatic tool sinking, tool breaking (optional) |
| Cutting speed | 5～100mm/s adjustable |
| PCB cutting thickness | 0.3-3.0MM |
| Programming method | Whole panel photography,picture drawing line teaching |
| Control method | PC precision 3-axis control system |
| X,Y1,Y2,Z drivern methos | Domestic servo drive (Panasonic option) |
| Suitable routing bits size | 0.8～3.0MM |
| Power supply | AC220V 50/60HZ single phase |
| Machine size | L*W*H(1250mm*650mm*1550mm) |
| Machine weight | 300kg |
| Dust cleaner power | 3HP |
| Dust cleaer power supply | AC380V 3 phase |
| Dust clear size | L*W*H(800mm*400mm*780mm) |
| Dust cleaner size | 60kg |
| Dust cleaning method | Top side/bottom size cleaning (optional) |
Dimensions
Machine details
Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.
Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)
Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.
