Double Platform Offline PCBA Router Machine with ±0.01mm Repeat Accuracy and 40000~60000rpm Spindle for PCB Depaneling

Name: Double Platform Offline PCBA Router Machine with ±0.01mm Repeat Accuracy and 40000~60000rpm Spindle for PCB Depaneling
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: RM-F550
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

Double Platform PCB Depaneling Router Machine

±0.01mm Repeat Accuracy Offline PCBA Router Machine

40000~60000rpm Spindle PCB Router Machine

Product Description

Double Platform Offline PCBA Router Machine for Depaneling Straight Line

The RM-F550 is a newly developed router machine designed for depaneling complete printed circuit board assemblies (PCBA) into individual PCBA boards. This industrial-grade equipment features a stable platform to ensure exceptional working precision.

Machine Overview

With a standard working platform size of 300×350mm and an optional larger platform of 400×600mm, this machine offers user-friendly visual programming for rapid and accurate online programming while monitoring the depaneling process in real-time.

Key Features

High-performance industrial equipment with precision linear guides, control cards, and servo motors
4-axis motion control with high-resolution CCD visual alignment and dual-platform design for enhanced production efficiency
Germany brand routing spindle operating at 40,000-60,000 RPM
Taiwan Hiwin brand guides ensuring precision and smooth movement
Tool life monitoring with automatic blade position switching after specified cutting distance
Suitable for depaneling straight lines, arcs, and circular connected boards

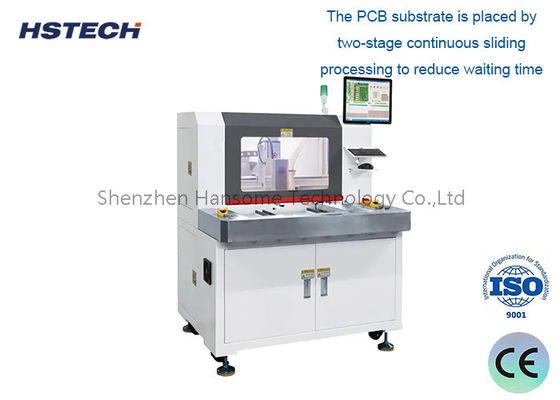

Two-stage continuous sliding processing to minimize waiting time and maximize production output

Technical Specifications

Model	RM-F328
Structure	Single Spindle, Double Platform
Efficient Cutting Length	300×350mm
Cutting Types	Straight Line, Arc, Circular
Moving Speed	X/Y Axis: 1000mm/s, Z Axis: 500mm/s
Dust Collection Method	Upper Collection
Spindle Speed	40,000-60,000 RPM
Routing Spindle	Maximum 60,000 RPM
Cutting Speed	1-100mm/s adjustable
Cutting Accuracy	±0.03mm
Repeat Accuracy	±0.01mm
Programming	Colorful CCD
External Connection	USB
Router Kit	Milling Cutter, φ0.8-φ3.0 Left Rotation, Shank Tungsten Steel
Power Supply	380V
Machine Power	2000W
Dust Collector Size	600×470×730mm
Dust Collector Power	2.2Kw, 380V
Dust Collector Air Pressure	4-6 KG/cm³
Security Door	Manual Door
Error Alarm	Yes
Program Method	Self Programming, Camera Controlled by Keyboard and Mouse

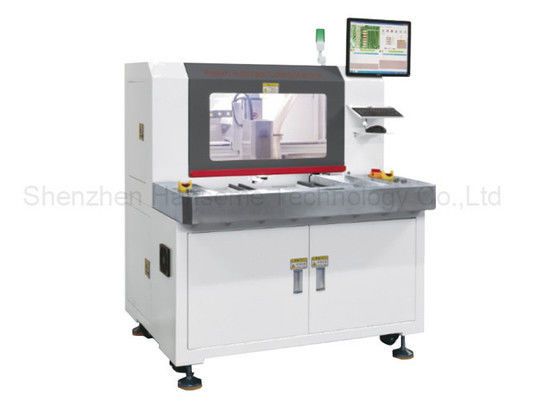

Machine Visuals

Operation Comparison

This double platform offline PCBA router machine delivers exceptional precision and efficiency for PCB depaneling applications, featuring advanced automation and monitoring capabilities for industrial manufacturing environments.
