CAD Document Support 360 Degree Rotation Tabletop Soldering Robot with Dual Working Station

Brand Name:	HSTECH
Model Number:	HS-S5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop Soldering Robot

Other Name:

Robotic Soldering Machine

Working Station:

Dual Working Station

Soldering Head:

Single Tip

Rotation:

360degree

System:

Manual Programming, Fast Swtiching

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

360 Degree Rotation Tabletop Soldering Robot

Dual Working Station Automatic Soldering Robot

CAD Document Support Robotic Soldering Machine

Product Description

CAD Document Support 360 Degree Tabletop Soldering Robot With Dual Working Station

This advanced automatic soldering machine is engineered for precision electronics manufacturing, featuring dual working stations and comprehensive CAD document support for optimal soldering performance.

Applications

Designed for the electronics manufacturing industry, this soldering robot handles processes that are challenging for reflow soldering and wave soldering systems. It excels with mixed circuit boards, heat-sensitive components, and delicate devices in SMT back-end processes. Applications include PCB board welding lines, charger plug welding, connector soldering, DC end tin applications, and LED light strip connections. The system replaces manual soldering to enhance efficiency and improve solder quality across automotive electronics, digital products, LCD manufacturing, circuit boards, connectors, RJ/network transformers, cable assemblies, FPCB welding, COF welding, computer motherboards, speakers, and motor quality welding industries.

Key Features

Fully automated operation including soldering, cleaning, and smoke exhausting
Compatible with all component types including inserts and surface-mount devices
Supports spot, drag, circle, curve, and irregular soldering patterns on PCB panels
Dual soldering tips and dual working stations for continuous high-efficiency operation
Precision tin volume control with consistent welding, saving at least 30% solder compared to manual processes
High-quality heating system with temperature accuracy of ±2℃
Integrated smoke purification filter system extending soldering iron lifespan and improving quality
Automatic cleaning function ensuring stable soldering processing and extended equipment life

Technical Specifications

Model	HS-S5331R
Voltage	AC110V/220V, 50/60Hz
X/Y1/Y2/Z Working Range	500300300*100mm
R Axis	360 degree
X/Y1/Y2/Z Moving Speed	Max 300mm/s
Driven System	Stepper motor, timing belt
Linear Guide	Taiwan brand high precision guide
Repeat Accuracy	±0.02mm

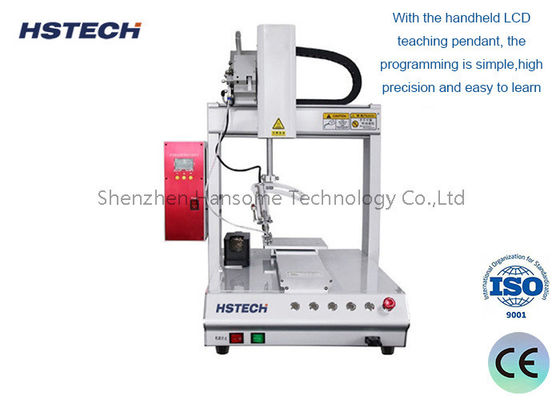

Programming	Manual programming with teach pendant
Control System	Control board
Program Storage	Stores one thousand sets of processing data with single files up to 3M storage space (five thousand processing points)
File Storage Space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document Support	CAD
Iron Tin Cleaning	Air cleaning/pneumatic
External Interface	USB+RS232
Soldering Method	Point/drag soldering
Weight	85kg
Machine Dimension	680585800mm

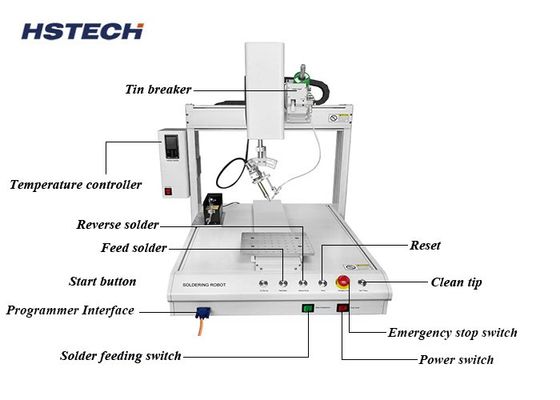

Product Images

High Precision Automatic Soldering Robot with ±2℃ Temperature Accuracy
