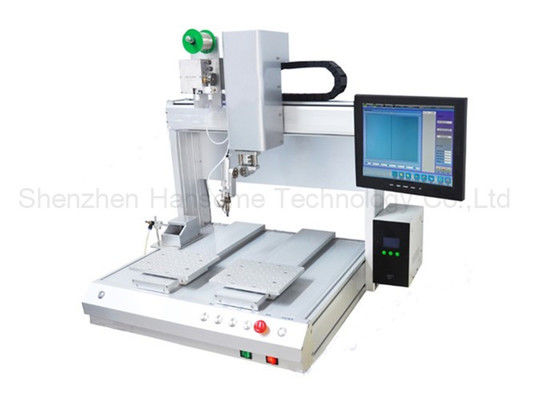

Single Head Tip Desktop Soldering Robot with 360 Degree Rotation and Dual Workbenches

Brand Name:	HSTECH
Model Number:	HS-S5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Soldering Robot

Other Name:

Automatic Soldering Machine

Working Station:

Dual Workbenches

Soldering Head:

Single Head/tip

Rotation:

360degree

System:

Manual Programming, Fast Swtiching

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Single Head Tip Desktop Soldering Robot

360 Degree Rotation Automatic Soldering Machine

Dual Workbenches Automatic Soldering Robot

Product Description

Single Head Tip Desktop Soldering Robot With Stepper Motor And Timing Belt

This precision desktop soldering robot features a single head tip design with stepper motor drive and timing belt system, delivering exceptional accuracy and reliability for electronic manufacturing applications.

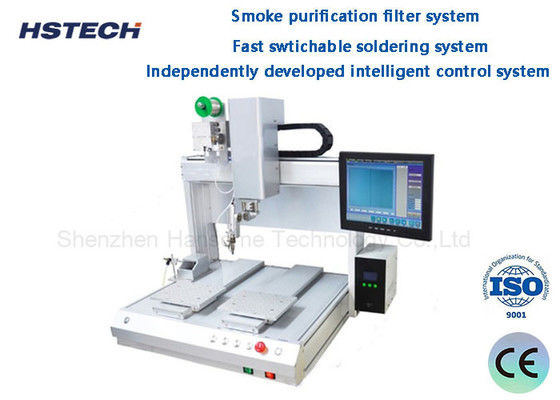

Key Features

Integrated display for real-time monitoring of the working process
Dual workstation design with fast-switchable soldering system to eliminate fixture changeover time
Proprietary intelligent control system with powerful functionality and user-friendly interface
Comprehensive process library for simplified and accelerated programming
Optional universal auxiliary fixtures for quick on-site configuration
High-quality mechanical structure requiring minimal maintenance
High-power heating controller ensuring stable continuous welding performance
Integrated smoke purification filter system to extend soldering iron lifespan and improve quality
Automatic cleaning function for consistent soldering performance and extended tool life

Technical Specifications

Model	HS-S5331R
Voltage	AC110V/220V, 50/60Hz
X/Y1/Y2/Z Working Range	500300300*100mm
R Axis	360 degree
X/Y1/Y2/Z Moving Speed	Max 300mm/s
Driven System	Stepper motor, timing belt
Linear Guide	Taiwan brand high precision guide
Repeat Accuracy	±0.02mm
Programming	Manual programming with teach pendant
Control System	Control board
Program Storage	1,000 sets of processing data, single file up to 3M (5,000 processing points)
File Storage Space	Handheld box 256M, offline card 32M, single file up to 3M (100,000 processing points)
Document Support	CAD
Iron Tin Cleaning	Air cleaning/pneumatic
External Interface	USB+RS232
Soldering Method	Point/drag soldering
Weight	60kg
Machine Dimension	680585800mm

Applications

This automatic soldering machine is primarily used in electronics manufacturing for processes difficult to achieve with reflow soldering and wave soldering. It's particularly suitable for mixed circuit boards, heat-sensitive components, and sensitive devices in SMT back-end processes. Widely applied in PCB board welding lines, charger plug welding, connector soldering, DC end tin, LED light strip connections, and various electronic assembly applications.

Automatic soldering robots replace manual soldering to enhance work efficiency and improve solder quality. Suitable for automotive electronics, digital products, LCD manufacturing, circuit board production, connectors, RJ/network transformers, cable assemblies, FPCB welding, COF welding, computer motherboards, speakers, and motor quality welding industries.
