Bottom Dust Collection Offline PCBA Depaneling Router with 4 Axis Motion Control Board

Brand Name:	HSTECH
Model Number:	AR-7mini
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Depaneling Router

Other Name:

Automatic PCBA Separating Machine

Fixture:

Needed

Power Supply:

AC380V, 50/60Hz

Working Table Size:

50x50~260x310mm(max)

PCBA Loading Method:

Manual

Dust Collector:

Standard Configuration

Machine Body:

Stainless Steel

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Product Description

Bottom Dust Collection Offline PCBA Depaneling Router with 4 Axis Motion Control Board

Introduction:

An offline PCBA depaneling machine is a specialized device used to separate assembled PCBs into individual PCBAs. "Offline" means it's not integrated into the SMT production line, but rather operates as a standalone station, manually loaded and unloaded by an operator.

It typically uses a high-speed spindle and a milling cutter as a cutting tool. Through program control, milling is performed along pre-designed paths (V-cuts or stamp holes), achieving high-precision, high-quality separation.

Specification:

Model	AR-7	AR-7 mini
Power supply	AC380V, 50/60Hz, 3KW
Working size	50x50~410x460mm(max)	50x50~260x310mm(max)
Loading mode	Manual
Cutting spindel/speed	5000~60,000 rpm
PCB thickness	0.4-4mm
Separating speed	1-100mm/s
Cutting accuracy	±0.05mm
Fixing type	Fixtures
Programing	Visioin teaching, inline programing
Milling kit	φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method	Bottom dust collection
Dust collector	3 phase, 380V, 1.2KW
Noise	<75dB
Control system	Industrial PC
Spindle brand	Germany brand, Sycotec 4025
Servo motor	A5 series
Motion control	4 axis motion control board
Lead screw	C5 grinding screw lead
Linear guide	P rank silence guide
Camera	Germany brand Imaging 40W industril camera
Machine size	700800930 mm	500650930mm
Screen	17inch

Features:

Offline automatic separating.
It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
Customized fixtures.
PC and CCD visual system.
Programming with compensation and dust collection.
Available for max 410-510mm size PCBA.
Flexible for cutting two differenct type products.
Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).

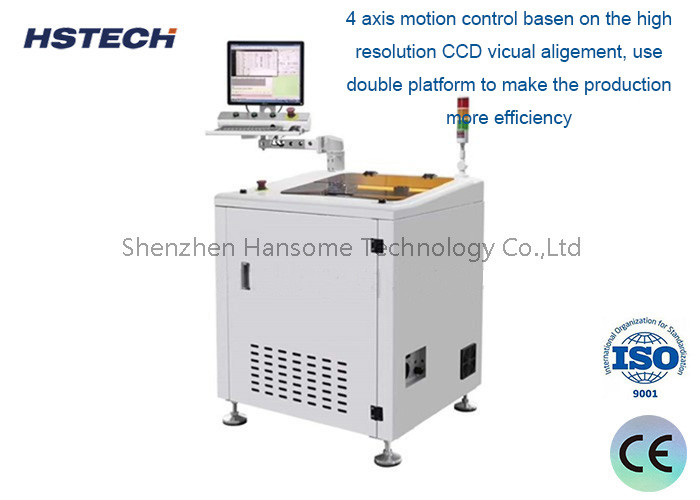

Bottom Dust Collection Offline PCBA Depaneling Router with 4 Axis Motion Control Board 0

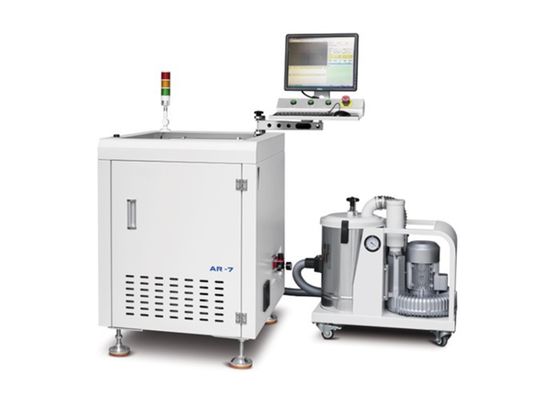

Bottom Dust Collection Offline PCBA Depaneling Router with 4 Axis Motion Control Board 1
