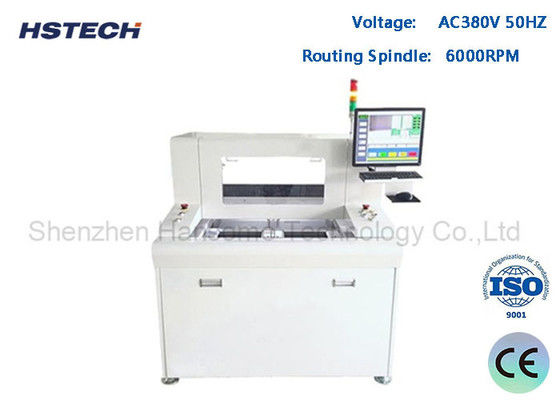

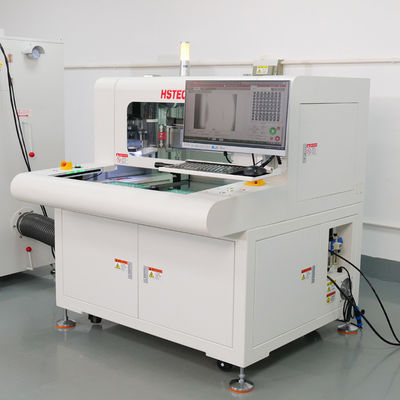

CCD Detection PCBA Router Machine with 6000RPM Routing Spindle and Servo Motor Driven for PCB Depaneling

Brand Name:	HSTECH
Model Number:	RM-560
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCBA Router Machine

Other Name:

Automatic PCB Router

Platform:

Double

Routing Spindle:

6000RPM

Guide:

Hiwin

Driven Motor:

Servo Motor

Voltage:

AC380V 50HZ

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

CCD Detection PCBA Router Machine

6000RPM Routing Spindle PCB Depaneling Router Machine

Servo Motor Driven Automatic PCB Router

Product Description

CCD Detection Bottom Collection PCBA Router Machine With Servo Motor

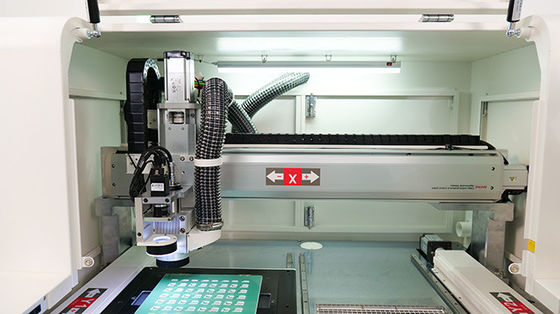

This advanced automatic PCB router machine features high-speed routing spindle technology with dual work platforms and 4-axis servo motor drive. The spindle moves according to preset programming to automatically separate stamp hole connected boards, curve boards, and other irregular shape boards. Operating on Windows system with CCD detection for separating track monitoring, allowing real-time process verification.

Key Features

High-speed routing spindle at 6000rpm
Windows operating system with manual location or file import capabilities
CCD detection system for precision monitoring
Integrated internal dust collection system
Suitable for separating FPC boards, aluminum boards, FR4 materials, and more
Ideal for stamp hole connected boards, curve boards, replacing traditional V-cut methods

Technical Specifications

Model	RM-560
Structure	Single Spindle, dual work platforms
Machine Size (mm)	100012001550
Gross Weight	700kg
Dust Collector Size (mm)	6256001600
Dust Collection Method	Bottom collection
Work Platform Size	300*400mm
Platform Driving Type	Double rotary platform, precision slicer with 3-phase motor inverter
Driving System	X/Y/Z axis driven by servo motor, W axis driven by three phase motor frequency inverter
Routing Spindle	6000rpm
Cutting Speed	1-100mm/s
Cutting Accuracy	±0.05mm
Repeat Accuracy	±0.02mm
Axis Moving Speed	800mm/s
Z Axis System	Screw driven, dual guide
Router Kit	Milling cutter, φ0.8~φ3.0 left rotation, Shank Tungsten Steel
Tool Life Control	Software program control
Active Protective Function	Safety light curtain
Security Door	Manual door
Error Alarm	Yes
Program Method	Self programming, camera controlled by keyboard and mouse
