Aluminum and Fiber LED Strip Separating Machine with 4 Groups Blade Separating

Brand Name:	HSTECH
Model Number:	HS-F306
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

LED Strip Separating Machine

Other Name:

High Speed LED Strip Separator

Voltage:

AC220V/110V

Pcb Thickness:

0.8mm -3mm

Material:

Stainless Steel / Aluminum

Usage:

Aluminum Board,LED Board

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Fiber Strip Separating Machine

Aluminum LED Strip Separating Machine

Fiber LED Strip Separating Machine

Product Description

Aluminum and Fiber LED Strip Separating Machine with 4 Groups Blade Separating

Introduction:

This machine use 4 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,step by step cutting, disperse the cutting force stress to each group blade, greatly lower down the force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.

Features:

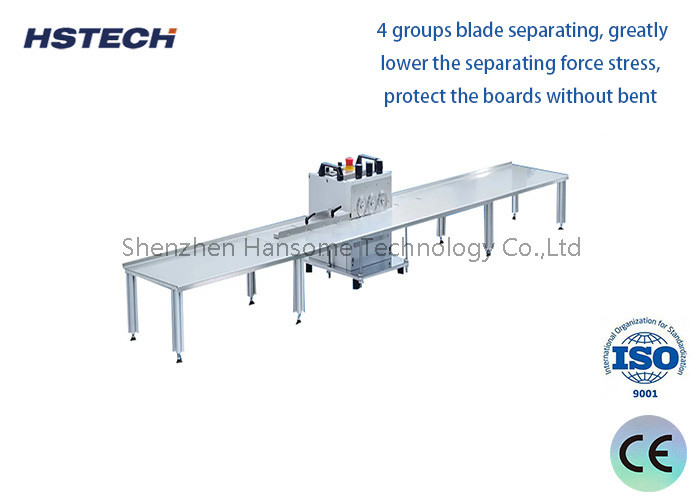

1, 4 groups blade separating, greatly lower the separating force stress, protect the boards without bent.

2, 4 groups blade step separating, make sure the board cutting surface smooth, without glitch.

3, Special new design balde, durable 2 times than normal blade, also the top and bottom blade can be adjusted accurately.

4, The whole machine is high precision, easy to maintenance, safety operation.

5, The platform length has options for 1.2meter and 2.4 meter, also the platform can be fed with a trough to collect the separated boards conveniently.

6, The platform height can be adjusted, range 0~50mm.

Specification:

Model			HS-F360
Production name			4 groups high speed strip separating machine
Machine dimension			390mm×400mm×330mm
Platform dimension			1200mm(or 2400mm)×426mm×200mm
Blade dimension			Circular blade ϕ60mm×12mm×3mm
Separating thickness			0.8~3mm, 1/3 of the board thickness
Voltage			AC220V/110V, 50/60Hz
Air supply			No
Machine power			90W
Separating speed			1mm-2000mm/s
Separating length			100mm-unlimited
Separating width			4-100mm best, single board width,not whole pin board width
Suitable boards			LED strip board,aluminum and fiber glass boards
Weight			Around 40kg
