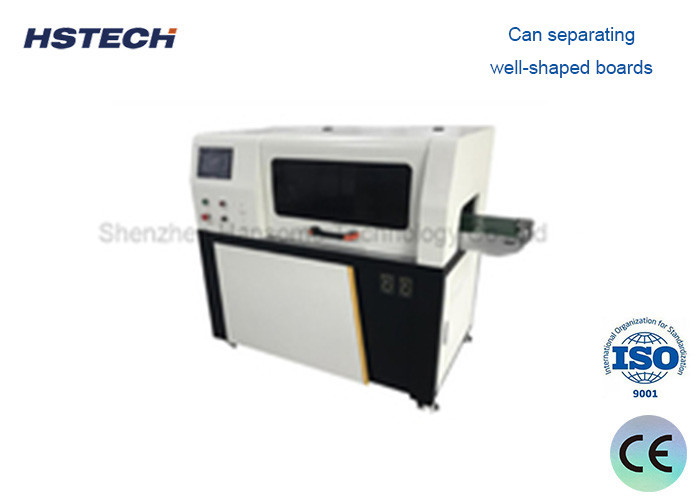

300kW PCB Depaneling Router With PLC And Touch Screen Control CAB Separating Blade

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Product Name:	Well Shaped PCB Depaneling Machine	Voltage:	AC220V/110V,optional
Blade Brand:	CAB	Machine Power:	300kW(without Dust Collector)
Warranty:	1 Year	Condition:	New
High Light:	Touch Screen Control PCB Depaneling Router , 300kW PCB Depaneling Router , PLC PCB Depaneling Router

300kW PCB Depaneling Router With PLC And Touch Screen Control CAB Separating Blade

Features:

1, Can separating well-shaped boards.

2, Can fit the request for horizontal and vertical board depaneling.

3, The machine can achieve rapid change, modular change quickly.

4, PLC and touch screen control.

5, Can connect the upstream PCB loader machine.

6, Germany brand CAB separating blade.

7, Easy operation, operator can use the machine with easy training.

8, Unique new sepration tool design, durability increase by 1.5-2 times.

9, Safety: Light curtain induction safety device ensures safe production.

Specification:

Model			HS-F390
Production name			Well shaped PCB depaneling machine
Machine dimension			250mm* 800mm*1295mm
Blade dimension			Circular blade ϕ60mm or φ80mm, linear blade 356x43.5x6mm
Blade material			high speed steel
Separating width			Small board 12mm, whole pin board 300mm
Voltage			AC220V/110V, 50/60Hz
Machine power			300kW(without dust collector)
Separating thickness			1/3 of board thickness
Air supply			0.5~0.8Mpa
Separating speed			300mm/s
Separating width			1mm-200mm (The width of a single piece, not the width of the entire piece.)
Driven system			Stepper motor/ servo motor
Suitable boards			LED strip board/LED tube,aluminum baord and fiber glass boards
Weight			Around 300kg
