Place of Origin: | Japan |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | JTR |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Carton package |
Delivery Time: | 3 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | Reflow Soldering Heating Wire | Port: | Shenzhen |
---|---|---|---|
Usage: | Reflow Soldering | Precision: | High |
Size: | Multiple Specifications Can Be Customized | Warranty: | 6 Month |
Track: | Double-Track | Material: | Stainless Steel |
High Light: | JT SMT Machine Parts Heating Wire,Heating Wire SMT Machine Parts,Stainless Steel Heating Wire |
Double-Track Stainless Steel Reflow Soldering Heating Wire JTR Widened Series For JT SMT Machine Parts
introduce:
Reflow soldering is a group or point-by-point soldering process in which an appropriate amount and form of solder is placed in the PCB soldering area in advance, and then the surface mount components are placed, using an external heat source to reflow the solder to meet the soldering requirements. Usually a reflow soldering machine is used. The heat required during the working process is provided by a large number of heating wires installed in the reflow soldering machine. Therefore, the heating wire is an important part of the reflow soldering machine.
Specification;
Brand | JT ,HSTECH |
Whether it can be customized | YES |
Type | Nickel chromium electric heating alloy |
Model | JTR,AS,KT,JTE |
Material | Nickel chromium wire + stainless steel frame |
Normal temperature resistance | 30Ω |
Power | 2.5 K (W) |
The main purpose | Reflow |
Models:
KTD-0804 / KTD-1204/ KTD-1204N
KTS-1204/ JTE-800/ JTE-800-D
ES-800/ ES-1000/ NS-800/ NS-800-N
AS-1000-N/ RAD-0804/JTR-1000-D-N/AS-800-N/ RS-1000-N/ KT-1024-N

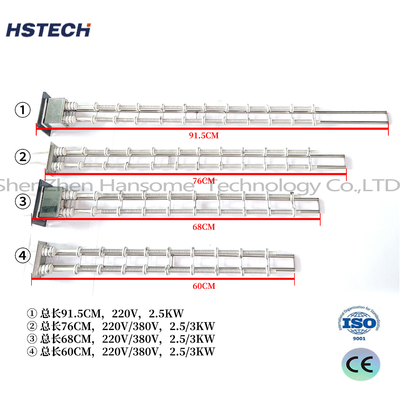

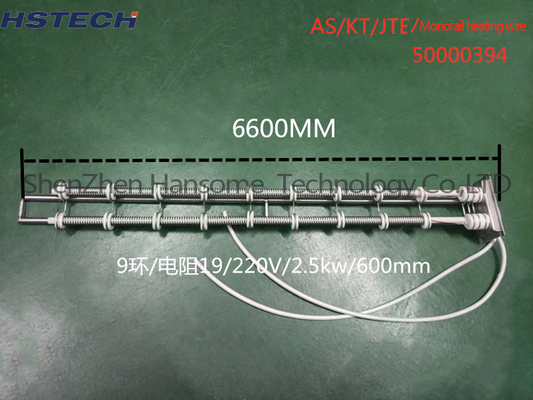

Images:
