| Place of Origin: | China |
| Brand Name: | JT,HSTECH |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Wave Soldering Filter+Cover+Nozzle | Payment: | TT |
|---|---|---|---|
| Body Material: | Stainless Steel | Applications: | SMT Machine Parts |
| Dimensions: | Various Specifications, Customizable | Standard Or Nonstandard: | Standard |
| Warranty: | 6 Month | Delivery Day: | 1-3 Days |

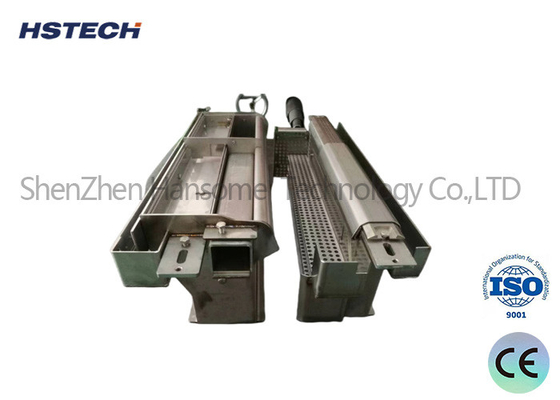

Stainless Steel Wave Soldering Porous Cover Plate MPS-350II Spoiler Wave Nozzle Plate+Guide Groove
Wave Soldering
1.Spray Fluxer+ Preheating+ Solderingmodule, integrated design, flexibleconfiguration and free expansion;
2.The point soldering module and the group soldering module are freely matchedand combined;
3.The most efficient selective soldering module;
4.Sectional modulartransmission structure.
Advantages of selective wave soldering:
: Smaller equipment footprint
:Less energy consumption
:Significant flux savings
:Significantly reduce the generation of tin slag
:Significantly reduce nitrogen usage
:No tooling and fixture expenses are incurred
Features:
1.Computer + PLC + motion control module control system, WINDOWS XP + simple human-computer dialogue operating system, can be programmed offline;
2.Fully digital and 2D analog input management for spraying, heating, transportation, and welding;
3.The flux adopts selective spray and adjusts the spray volume in different areas (point and line programming control);
4.PCB positioning provides two types of high-precision mechanical positioning and hole positioning; greatly reduces flux and nitrogen consumption and reduces tin slag;
5.There is no need to use PCB welding fixtures and PCB cleaning, thus reducing additional production costs;
6.Modular temperature control, PID+SSR temperature control method, stable and accurate temperature control;
7.Group welding and spot welding can be used independently or in combination. The local free characteristics of spot welding effectively protect non-high temperature components and prevent PCB deformation.
Wave soldering cover:
| Wave soldering cover | used for one wave of wave soldering, commonly known as spoiler wave |
| Applicable models | MPS-350II, MPS-450II, WS-35I0, US350 |
| Cover size | 410*45*20mm, aperture 3MM |
| Net weight | 0.4KG |
| Material | Stainless steel |
| Purpose | During the filtration process of the filter, the filter cover needs to be fixed and covered to make the machine run smoothly |

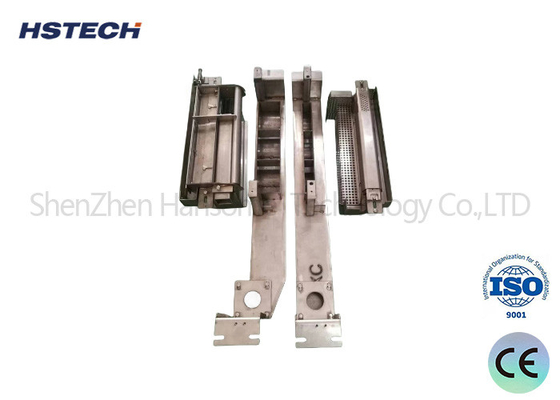

One wave diversion trough filter
Second-wave guide trough filter + matching adjusting screw
The latest three-layer filter
Wave soldering two wave nozzle:
| Applicable models | MPS350 nozzle, 450 nozzle |
| Length | 408MM, can be customized |
| Optional | stainless steel material, titanium alloy material, processed by automatic gong machine |
