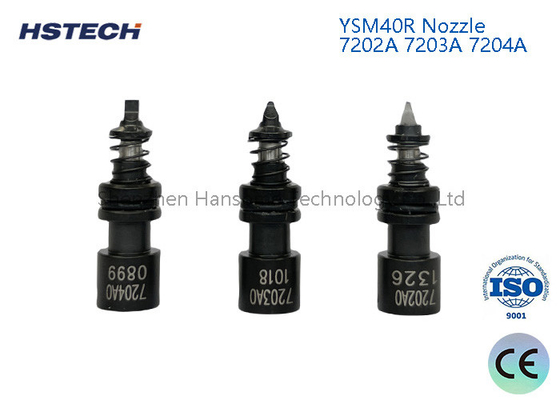

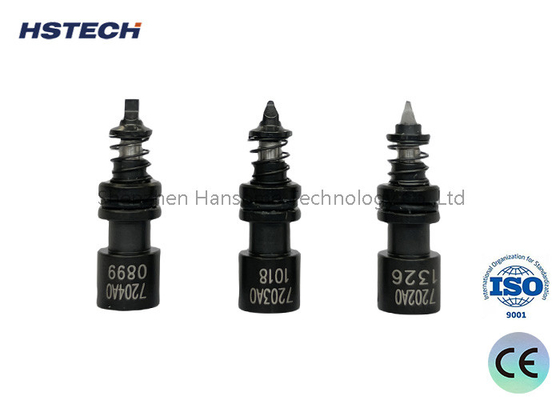

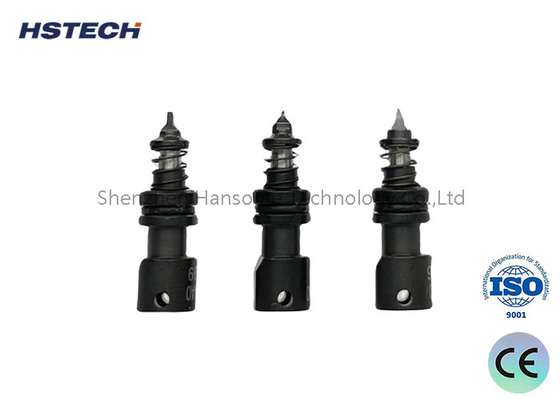

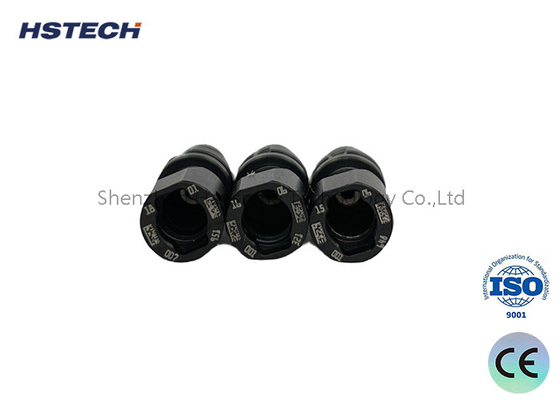

High-Speed Precision SMT Nozzle For Yamaha YSM40R-7202A 7203A 7204A Pick And Place Machine

Name: High-Speed Precision SMT Nozzle For Yamaha YSM40R-7202A 7203A 7204A Pick And Place Machine
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: YSM40R-7202A 7203A 7204A
Price: 6,005.00 USD
Availability: InStock

Brand Name:	YAMAHA
Model Number:	YSM40R-7202A 7203A 7204A
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Product Name:

Yamaha Nozzle

Usage:

For YAMAHA YS12/YG12/YS24 Machine

Part Number:

YSM40R-7202A 7203A 7204A

Condition:

Original New, Or Copy New

Package:

Foam Package+Plastic BOX+Carton Box

Shipping Term:

TNT DHL FEDEX EMS UPS

Type:

SMT Machine Parts

Customized:

Packaging Details:

Carton package

Supply Ability:

10000 pcs per month

Product Description

High-Speed Precision SMT Nozzle For Yamaha YSM40R-7202A 7203A 7204A Pick And Place Machine

Introduce

The YSM40R series is Yamaha's ultra-high-speed modular Z:TA-R SMT placement machine series. This series of nozzles is a key component used to pick up and place electronic components to achieve efficient patch production.

The Yamaha YSM40R is an ultra-high-speed modular Z:TA-R SMT assembly system. It is known for its revolutionary productivity, achieving a speed of 200,000 CPH (components per hour)

Features

High-speed performance	YSM40R nozzle adopts the latest technologies such as ultra-high-speed turret placement head and high-speed processing servo motor, achieving the world's highest level of placement speed, reaching 200,000 CPH
Ultra-high-speed turret-type placement head	The YSM40R nozzle adopts an ultra-high-speed turret-type placement head, which achieves innovation by reducing the weight of the placement head, adopting newly developed rotor control technology and unique simultaneous pickup technology. productivity
Miniaturized design	Although it is a 4-beam placement machine, the body size of the YSM40R is only 1m in width x 2.1m in depth. The design is very compact and can be efficiently utilized when the factory space is limited
flexibly support a variety of production forms	YSM40R nozzle has 2 placement head specifications, which can be appropriately replaced according to the production form. The ultra-high-speed placement head (RS placement head) is suitable for mounting components from 0201mm to 6.5mm and a height of 2mm. The multi-function placement head (MU placement head) is suitable for components from 03015mm to 45×60mm and a height of 15mm. Install
Flexible corresponding nozzle station	YSM40R nozzle can be replaced with a matching nozzle station (ANC) according to different placement heads, and when using an ultra-high-speed placement head, it also supports free configuration of the nozzle structure

High-Speed Precision SMT Nozzle For Yamaha YSM40R-7202A 7203A 7204A Pick And Place Machine 0

Application

SMT patch process	Widely used in the patch process on SMT (surface mount technology) production lines
Picking up and placing electronic components	suitable for picking up and placing various electronic components, such as chips, resistors, capacitors, etc., to achieve efficient patch production

YAMAHA YG12/YS12/YS 24 Series Nozzle

Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY

Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY

Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE

Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301

Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301

Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING

Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN

Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP

Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.

Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2

Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302

Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314

Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.

Yamaha YG12/YS12/YS24: 90990-17J013 O-RING

Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317

Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.

Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A

Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311

Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311

Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING

Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.

Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.

We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
