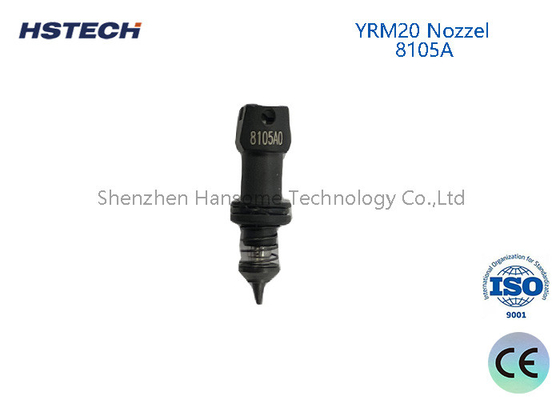

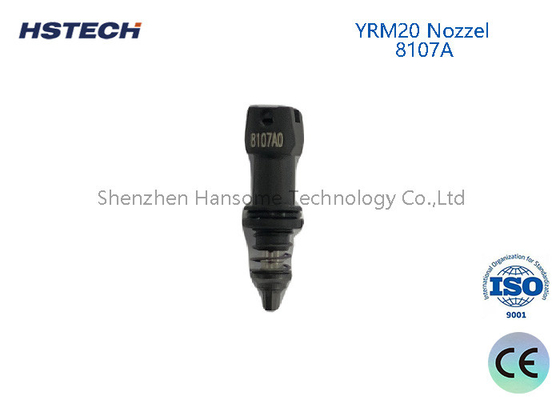

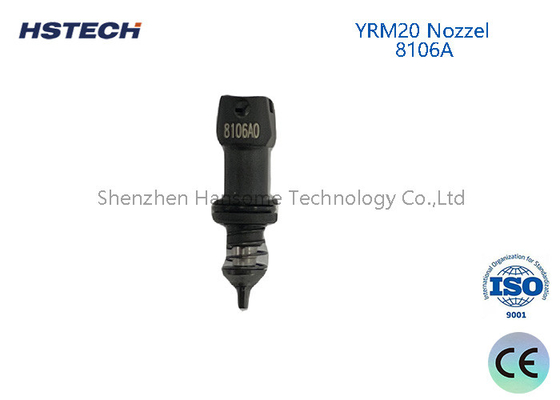

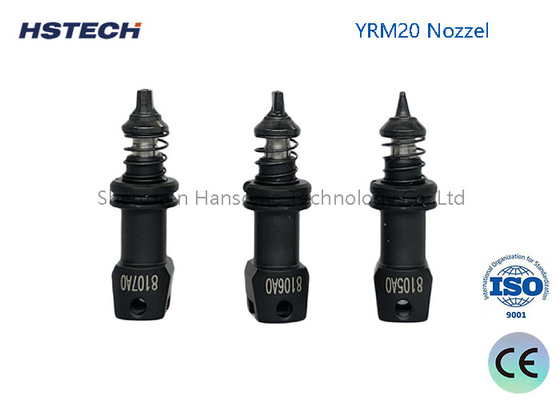

Precision SMT Nozzle For Yamaha YRM20-8105A 8106A 8107A Pick And Place Machine

Name: Precision SMT Nozzle For Yamaha YRM20-8105A 8106A 8107A Pick And Place Machine
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: YRM20-8105A 8106A 8107A
Price: 6,005.00 USD
Availability: InStock

Brand Name:	YAMAHA
Model Number:	YRM20-8105A 8106A 8107A
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Product Name:

Yamaha Nozzle

Usage:

For YAMAHA Machine

Part Number:

YRM20-8105A 8106A 8107A

Condition:

Original New, Or Copy New

Package:

Foam Package+Plastic BOX+Carton Box

Shipping Term:

TNT DHL FEDEX EMS UPS

Type:

SMT Machine Parts

Customized:

Packaging Details:

Carton package

Supply Ability:

10000 pcs per month

Product Description

Precision SMT Nozzle For Yamaha YRM20-8105A 8106A 8107A Pick And Place Machine

Introduce

1. The suction nozzle is a key component of the placement machine, used to pick up and place SMT components.
2. The suction nozzle uses vacuum adsorption to suck the components, and blows air to place the components on the designated position on the circuit board.

Features

Design Features

The component contact surface of Yamaha nozzles is usually designed to be centrally symmetrical to ensure stability and accuracy when picking up components

Features

1.The suction nozzle is a key part of the placement machine for placing components.

2.It uses the adsorption effect of vacuum to absorb the components and places the components on the coordinate position of the circuit board by blowing air.

3.The center of the nozzle and the center of the component and the spatial center of the image obtained should coincide to ensure ideal suction results.

4.When the nozzle is used as the background, it can enhance the contrast of the component image and make it more clearly visible

Material characteristics

The nozzle body is made of high-quality steel and has undergone special heat treatment. The inner hole has been precision ground to make the spring fit accurately and slide smoothly

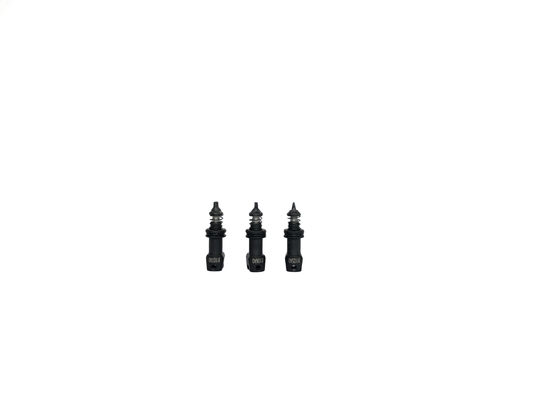

Precision SMT Nozzle For Yamaha YRM20-8105A 8106A 8107A Pick And Place Machine 0

Application

SMT patch process	Widely used in the patch process on SMT (surface mount technology) production lines
Picking up and placing electronic components	suitable for picking up and placing various electronic components, such as chips, resistors, capacitors, etc., to achieve efficient patch production

We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic, FUJI,JUKI,SAMSUNG ,etc.
