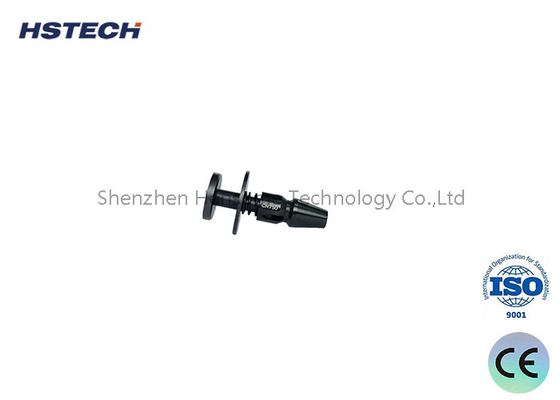

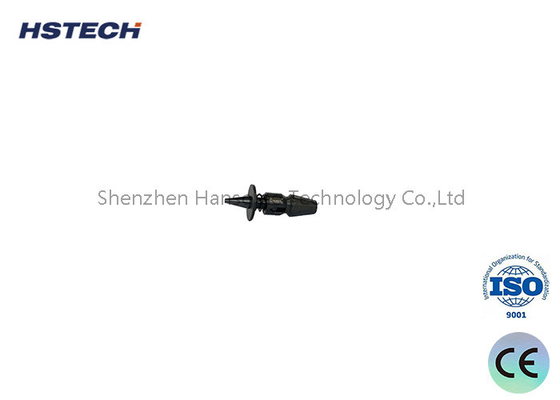

Samsung SMT Nozzle Made Ceramic Material Never Turns White CN065 750 220 Electronics Production Machinery

Samsung SMT Nozzle Made Ceramic Material Never Turns White CN065 750 220 Electronics Production Machinery

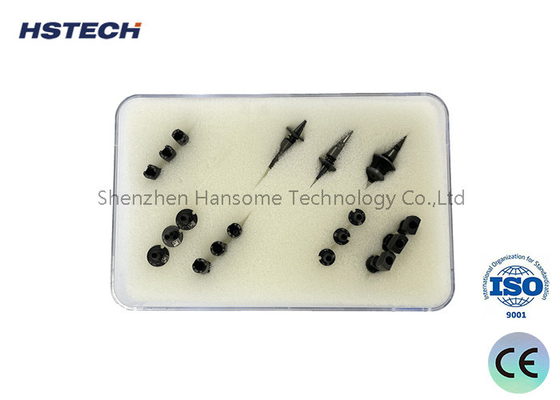

We can supply all kinds of SMT nozzle for Samsung machine. includeTN030/TN040/TN065/TN140/TN220/TN400/TN750/TN1100/

CN030/CN040/CN065/CN140/CN220/CN400/CN750/CN1100,

SN030/SN040/SN065/SN140/SN220/SN400/SN750/SN1100, CP45NEO and so on.

Introduction

1.Excellent material:Made of quality materials, reliable quality high cost-effective, long service life.

2.Excellent craftsmanship:The surface is smooth without flaw, the structure.
3.Strict quality control:The use of professional testing equipment, strict testing of products to ensure product standards.

Mounter nozzle material:

1, tungsten steel suction nozzle: tungsten steel suction nozzle sturdy, but easy to white, not afraid of trouble friends, Samsung suction nozzle, or SMT newcomers can choose tungsten steel suction nozzle, whitened with an oil-based pen coated, but also can continue to use.

2, ceramic nozzle: ceramic nozzle white, but very brittle, easy to break. Careful use can avoid or reduce the occurrence of breakage.

3, diamond steel nozzle: strong, good, white, but especially expensive, cost-effective.

4, rubber tip nozzle: when the surface of the material is not flat or sticky material, suitable for the use of rubber tip nozzle, but the rubber tip nozzle life is not long, it is recommended to order the rubber tip nozzle, samsung nozzle models, buy more rubber tip spare, when the tip is worn out, you can directly replace the rubber tip on their own.

Nozzle shape:

The shape of nozzle has square hole, round pass, V groove and so on. Custom-made suction nozzle, generally according to the shape of the material, choose a flat suction point, some made of elongated nozzle, into the material groove plane suction, some according to the edge of the material, made back to the word type, some of the two ends of the plane, the middle of the middle is not flat, it is necessary to build a bridge. Some materials are sticky, not good to put material, then we need to cut some slots in the nozzle wall, or made into a rubber head.

Specifications

Features

1. Original imported materials: with magnetic cap, ceramic mouth head and ceramic reflector, dip the mouth head of Korea imported strong glue.
2. Concentricity of up to 95% or more, high rate of adsorption and precision mounting
3. Vacuum value is large, no vacuum leakage, plug the suction nozzle hole vacuum up to 700 or so.
4. Good elasticity, no gap between the middle core rod and the inner wall of the cap, very good finish of the inner wall of the cap, the middle core rod slides up and down smoothly without friction.
5. The pin of the spring will never fall off, and the punch presses it in and out.
6. Ceramic mouth head and reflector will never fall off, Korea's original imported strong glue dipped in a solid and incomparable.
7. The original imported cap wear-resistant high, often change the mouthpiece 3 years cap will not wear and paint.
8. Ceramic mouth head is an advanced open grinding one-time forming technology, smooth and delicate surface, rather than processing grinding out, rough surface.
9. Original quality, good price.

SAMSUNG CP45FV

TN03 SAMSUNG CP45 PICK UP NOZZLE -Ø0.8/Ø0.28 (TN03)

J7055246A SAMSUNG CP45 PICK UP NOZZLE -Ø0.75/Ø0.38 (TN04)

J7055267A SAMSUNG CP45 PICK UP NOZZLE -Ø1.2/Ø0.65 (TN65)

J7055131C SAMSUNG CP45 PICK UP NOZZLE -Ø2.2/Ø1.4 (TN14)

J7055132C SAMSUNG CP45 PICK UP NOZZLE -Ø3.6/Ø2.2 (TN22)

J7055133C SAMSUNG CP45 PICK UP NOZZLE -Ø6.2/Ø4.0 (TN40)

J7055135C SAMSUNG CP45 PICK UP NOZZLE -Ø9.0 /Ø7.5 (TN75)

J7055137C SAMSUNG CP45 PICK UP NOZZLE -Ø12.7/Ø11.0 (TN110)

SAMSUNG CP45

J9055133B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø0.8/Ø0.28 (CN030)

J9055134B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø0.75/Ø0.38 (CN040)

J9055135B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø1.2/Ø0.65 (CN065)

J9055138B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø2.2/Ø1.4 (CN140)

SAMSUNG CP60

J9055069B SAMSUNG CP60 PICK UP NOZZLE -Ø0.8/Ø0.3 (TN030)

J9055070B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø0.75/Ø0.38 (TN045)

J9055071B SAMSUNG CP45 NEO PICK UP NOZZLE -Ø1.2/Ø0.65 (TN070)

J9055072C SAMSUNG CP45 NEO PICK UP NOZZLE -Ø2.2/Ø1.4 (TN140)

J9055073C SAMSUNG CP45 NEO PICK UP NOZZLE -Ø3.6/Ø2.2 (TN220)

J9055074C SAMSUNG CP45 NEO PICK UP NOZZLE -Ø6.2/Ø4.0 (TN400)
