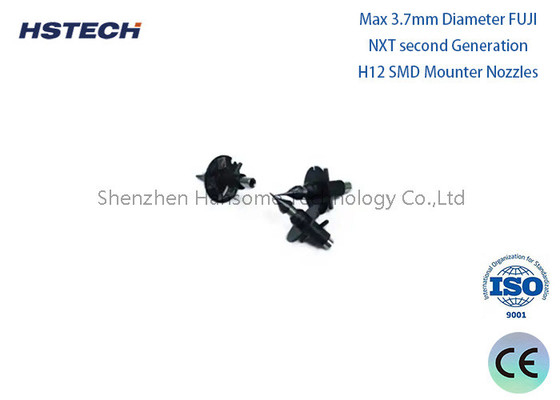

Max 3.7mm Diameter FUJI SMT NOZZLE NXT Second Generation H12 SMD Mounter Nozzles

Brand Name:	FUJI
Model Number:	NXT
MOQ:	1 PC
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Product Name:

FUJI NXT Nozzle

Shipping Term:

TNT DHL FEDEX EMS UPS

Quality:

Top

New:

Original / Copy

Mahchine:

NXT Pick And Place Machine

Nozzle Head:

H12

Packaging Details:

Carton package

Supply Ability:

10000 pcs per month

Highlight:

H12 SMD Mounter Nozzles

SMD Mounter FUJI SMT NOZZLE

3.7mm FUJI SMT NOZZLE

Product Description

Max 3.7mm Diameter FUJI SMT NOZZLE NXT Second Generation H12 SMD Mounter Nozzles

Introduce
The SMT nozzle is installed on the patch head and is used to pick up component patches and mount them on the circuit board. With the miniaturization and high density of components on circuit boards, higher requirements have been placed on the accuracy of placement machines, as well as higher requirements on the precision and quality of SMT nozzles.

SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:

Round nozzle	The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc.
Rectangular nozzle	The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc.
Needle nozzle	Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc.
V-shaped nozzle	V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc

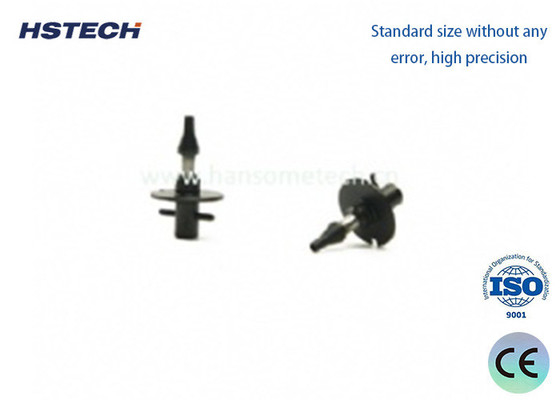

Max 3.7mm Diameter FUJI SMT NOZZLE NXT Second Generation H12 SMD Mounter Nozzles 0

NXT H12/H08/H04/H01 Nozzle Series

Part Numbwr	Description
AA05600	H0812 Yellow Φ0.45/0.3
AA05700	H08 Blue Φ0.7/0.5
AA05800	H08 Pink Φ1.0
AA20A00	H08 Green Φ1.3
AA06400	H08 Orange Φ1.3 Melf
AA20B00	H08 Aqua Φ1.8
AA19G00	H08 Orange Φ1.8 Melf
AA20C00	H08 Purple Φ2.5
AA06504	H08 Orange Φ2.5 Melf(R07-025M-070)
AA0WT00	H08 Purple Φ2.5G
AA20D00	H08 Yellow-Green Φ3.7
AA18C00	H08 Yellow-Green Φ3.7G
AA20E00	H08 Medium pruple Φ5.0
AA06300	H08 Red Φ5.0G
AA06W00	H04 Pink Φ1.0
AA06X00	H04 Green Φ1.3
AA06Y00	H04 Aqua Φ1.8
AA22Z14	H04 Orange Φ1.8 Melf
AA06Z00	H04 Pruple Φ2.5
AA07F00	H04 Pruple Φ2.5G
AA07A00	H04 Yellow-Green Φ3.7
AA07G00	H04 Yellow-Green Φ3.7G
AA07B00	H04 Medium pruple Φ5.0
AA07H00	H04 Red Φ5.0G
AA07C00	H04 Medium pruple Φ7.0
AA07K00	H04 Dark Red Φ7.0G
AA07D00	H04 Medium pruple Φ10.0
AA07L00	H04 Navy Φ10.0G
AA07E00	H04 Medium pruple Φ15.0(R19-150-155)
AA07M00	H04 White Φ15.0G(R19-150-155)
AA8WX00	H04S Φ2.5(R19-025-155-S)
AA8CC00	H04S Φ3.7(R19-037-155-S)
AA0AS00	H01 Pink Φ1.0
AA05800	H01 Green Φ1.3
AA0MZ00	H01 Orange Φ1.3 Melf
AA06900	H01 Aqua Φ1.8
AA11R00	H01 Orang Φ1.8 Melf
AA07000	H01 Purple Φ2.5
AA08400	H01 Purple Φ2.5G
AA07100	H01 Yellow-Green Φ3.7
AA08500	H01 Yellow-Green Φ3.7G
AA07900	H01 Medium pruple Φ5.0
AA07200	H01 Red Φ5.0G
AA08000	H01 Medium pruple Φ7.0
AA07300	H01 Dark Red Φ7.0G
AA08100	H01 Medium pruple Φ10.0
AA07400	H01 Navy Φ10.0G
AA08200	H01 Medium pruple Φ15
AA07500	H01 White Φ15.0G
