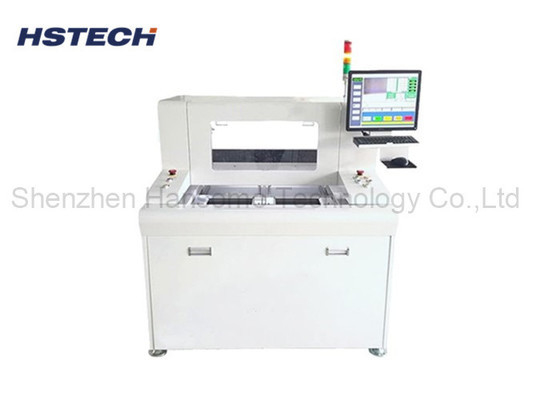

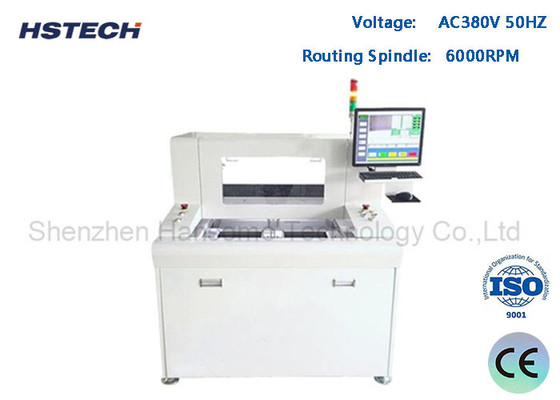

Servo Motor X/Y/Z Axis PCBA Router Machine CCD Detection With Double Platform

Servo Motor X/Y/Z Axis PCBA Router Machine CCD Detection with Double Platform

Introduction

This automatic PCB router machine using high speed-routing spindle, equipped with double platform, 4 axis servo motor driven,

the spindle moving according to the preset programming, automatic separating the stamp hole connectted board, curve board,and other inregular shape boards.

The machine use window operation system, CCD detection the separating track,can check the separating process any time.

Feature

This PCB Separator adopt x,y,z servo motor and driving system and ball screw ,linear guide railensure machine run smooth and precisely,moving accuracy less than 0.01mm, routing accuracyess then 0.05mm.
Rotary double work station design makes continuous running ,greatly improve productionefficiency .
Machine is equipped with high resolution CcD ,use direct teach programming method with crosscursor of CCD, very easy to operate , software can excute point ,line ,arc ,circle etc command to cutdifferent shape of panelled board ,it has mark positioning function ,can automatically correct thecoordinate offset when PCB position changed .Industrial PC ,Windows system and full english self developed softeware makes programming and
operating very easyEuipped with quality ,air cooling long service life routing spindle .External silence vaccum cleaner provide a clean and low noise work environment .Miling cut can be used as 2 or 3 section , just set the parameter on sofeware , it has greatlyprolonged milling cut' service life.
Equipped with anti static ionizing fan which can eliminate static and remove dust.

Main features

1, High speed routing spindle, 6000rpm.
2, Windows operation, manual location or file import.
3, CCD detection.
4, Internal dust-collector including.

5, Suitable for separating FPC board, aluminum board, FR4,etc.

6, Mainly used for separating stamp hole connected board, curve board, instead of traditional v-cut board.

Sepcfication

Machine details

High Speed routing spindle and internal dust-collector

Windows7/10 English version operating system,simple for debugging and operation.
