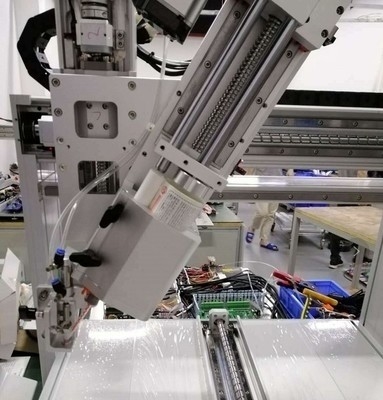

LCD Screen Operation 4 Axis AB Glue Dispensing Machine With Stepping Motor And Timing Belt

LCD Screen Operation 4 Axis AB Glue Dispensing Machine With Stepping Motor And Timing Belt

Introduce

AB Glue Dispensing Machine is a device used to accurately dispense and mix two different components of glue (usually Glue A and Glue B). It is widely used in electronic manufacturing, automated assembly, precision assembly and other fields for precise dosing and precision dispensing of glue.

The following is a general introduction to the AB glue dispensing machine

Equipment structure: AB glue dispensing machine usually consists of the following main components:

1.Glue supply system: including glue storage tanks, delivery pipelines and pumps for glue A and glue B, used to supply the two glues to the mixing device.

2.Mixing device: used to mix glue A and glue B, usually a static mixer or a dynamic mixer.

3.Dispensing control system: including dispensing valves, pneumatic systems and controllers, etc., used to control parameters such as glue flow, dispensing position and speed.

4.Motion control system: used to control the movement of the dispensing machine in three-dimensional space to achieve precise dispensing paths.

working principle

1.Preparation work: Put glue A and glue B into corresponding glue storage tanks respectively, and connect transportation pipelines, pumps and other equipment.

2.Mixing glue liquid: By controlling the mixing device, glue A and glue B are mixed according to the set ratio to form the required AB glue liquid.

3.Dispensing operation: Set the dispensing path and parameters, and evenly release the AB glue liquid to the target position or workpiece through the dispensing valve to form the required glue application mode (such as dispensing, line glue, surface glue, etc.).

4.Control and adjustment: Monitor and adjust the dispenser through the controller to ensure the accuracy and stability of the dispensing process.

Functions and features

Precise dispensing: By controlling the dispensing valve and motion system, the AB glue dispensing machine can achieve precise dispensing paths and dispensing amounts, and is suitable for various complex dispensing needs.

Mixing ratio control: Through the mixing device and control system, the mixing ratio of glue A and glue B can be accurately controlled and adjusted to meet different glue formulas and requirements.

Automated operation: AB glue dispensing machines usually have automated operation functions, which can achieve a continuous and efficient dispensing process and improve production efficiency.

Multiple dispensing modes: In addition to common dispensing modes, such as dispensing, line glue, surface glue, etc., some AB glue dispensing machines can also achieve complex multi-axis motion and three-dimensional dispensing to meet the needs of different applications.

Programmable control: AB glue dispensing machines usually have programmable controllers, which can set and adjust parameters as needed to achieve diversified dispensing operations.

Specification
