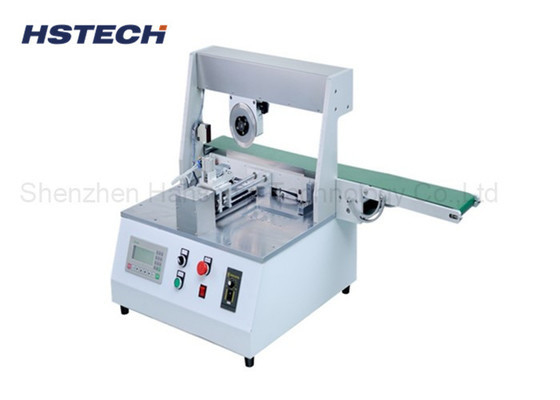

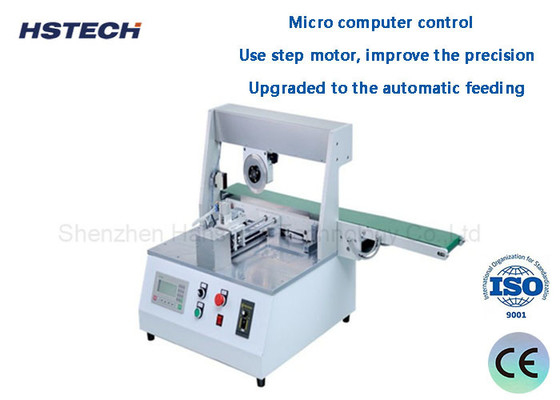

V-Cut PCB Depaneling Equipment Durable Blade Design Miving PCB Separator With Induction Function

V-Cut PCB Depaneling Equipment Durable Blade Design Miving PCB Separator With Induction Function

Introduce

The Blade Miving PCB Separator is a device used to separate printed circuit boards (PCBs). It uses a blade to cut PCB boards, separating large sheets into smaller individual pieces.

General introduction of Blade Miving PCB Separator:

1.Equipment structure: Blade mobile PCB separators usually consist of a fixed base and a movable blade. The blade can be moved by manual or electric mechanical means.

2.Cutting method: The blade is usually sharp and can cut on the predetermined line of the PCB board. By moving the blade, the PCB board is separated into the required size and shape.

3.Cutting accuracy: Blade mobile PCB separators need to have high-precision cutting capabilities to ensure the quality of the separated circuit boards. The sharpness of the blade and cutting pressure are important factors affecting cutting accuracy.

4.Safety: Blade mobile PCB separators are usually equipped with safety devices such as protective covers, emergency stop buttons and safety sensors to ensure the safety of operators.

5.Scope of application: The blade mobile PCB separator is suitable for the separation needs of various PCB boards, including rigid boards and flexible boards.

6.Operating instructions: In order to use the blade mobile PCB separator correctly, operating instructions are usually provided, including the assembly of the device, operating steps, safety precautions and maintenance.

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

8, Machine with conveyor belt to transfer separated PCB boards to the production line.

9. High safety, double protection of light curtain and knife guard to ensure safe production.

10,PLC accurately controls the automatic separator, and the machine can be connected to the pcb loader and unloader to achieve unmanned operation and fully automatic plate separation.
