360 Degree R Axis Desktop Soldering Machine With High Precision Stepper Motor And Timing Belt Driven System

360 Degree R Axis Desktop Soldering Machine With High Precision Stepper Motor And Timing Belt Driven System

Introduce

A Desktop Soldering Machine is a desktop device used for electronic soldering. It is commonly used in low-volume production, repairs and DIY

projects, providing a convenient and precise welding solution.

Desktop Soldering Machine has the following key features and functions:

1.Desktop design: This device has a compact design and is suitable for use on a workbench or desktop. It usually consists of a welding iron, console and bracket, providing a convenient work area so that the operator can perform welding work comfortably.

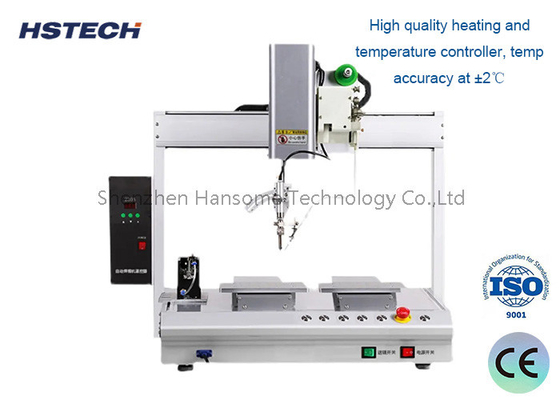

2.Temperature Control: The Desktop Soldering Machine is equipped with a temperature control system that can set and precisely control the temperature of the soldering iron according to the welding needs. This ensures a stable temperature during the welding process to obtain reliable welding results.

3.Rapid heating: Equipment typically has high-power heating elements that quickly heat the soldering iron to the required operating temperature. This saves waiting time and improves work efficiency.

4.Replaceable welding tips: Desktop Soldering Machines are usually equipped with replaceable welding tips to suit different welding needs and welding tasks. Welding tips can have different shapes and sizes to adapt to different welding objects and welding environments.

5.Safety Features: To ensure operator safety, Desktop Soldering Machines are often equipped with thermal protection features and drip-proof designs. Thermal protection feature automatically turns off the heating element when the device has not been used for an extended period of time to avoid overheating. The drip-proof design prevents molten solder from dripping to areas it shouldn't touch, preventing accidents and damage.

6.Adjustable Stands: Equipment’s stands are often adjustable in height and angle to provide greater welding comfort and flexibility. The stability and adjustability of the bracket make welding work more convenient and precise.

Application

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

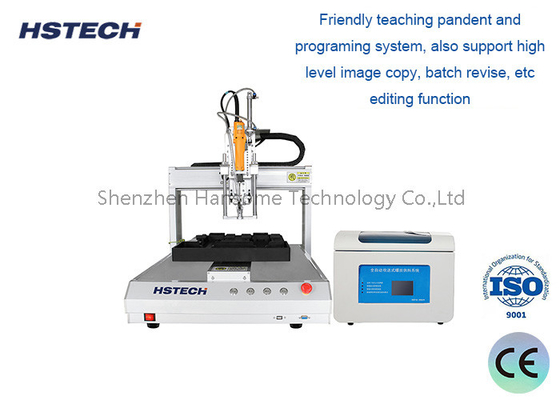

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification
