Stainless Steel Rapid heating Reflow Soldering Heating Wire with Double-Track

Stainless Steel Rapid heating Reflow Soldering Heating Wire with Double-Track

Introduce
Reflow soldering heating wire is a heating element used in the reflow soldering process. Reflow soldering is a common electronic manufacturing technique used to solder electronic components to circuit boards.

The following is a general introduction to Reflow soldering heating wire:

Function: Reflow soldering heating wire is mainly used to provide heating energy to melt and solidify the solder (usually solder paste) during the welding process. It conducts heat to the soldering area so that the solder reaches the appropriate temperature, thereby achieving a reliable connection between electronic components and circuit boards.

Structure: Reflow soldering heating wire is usually made of high temperature resistant alloy materials, such as nickel-chromium alloy. It usually comes in rolls or wires to facilitate placement in place during the welding process. Heating wires are usually somewhat flexible to accommodate different shapes and sizes of electronic components and circuit boards.

Working principle: During the reflow soldering process, the Reflow soldering heating wire is placed near the soldering area. When the heating wire is energized, it emits heat, heating the soldering area to the melting point of the solder. Typically, a high-temperature reflow oven or hot plate will provide additional heating to ensure that the entire soldering area reaches the proper temperature.

Application: Reflow soldering heating wire is widely used in the electronics manufacturing industry, especially in surface mount technology (SMT). It is suitable for soldering various electronic components, such as surface mount devices (SMD), chips, resistors, capacitors, etc. By controlling the heating parameters, an efficient and precise welding process can be achieved.

Advantages: Reflow soldering heating wire has some advantages. First, it provides even heating distribution, ensuring consistent heating of the welding area. Secondly, the heating wire has less thermal impact on electronic components, which can reduce the risk of component damage. In addition, using Reflow soldering heating wire for reflow soldering can improve soldering speed and production efficiency.

Feature

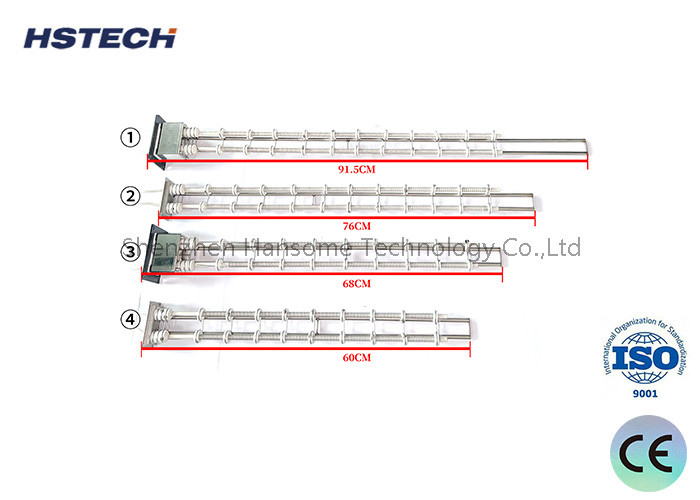

Size selection

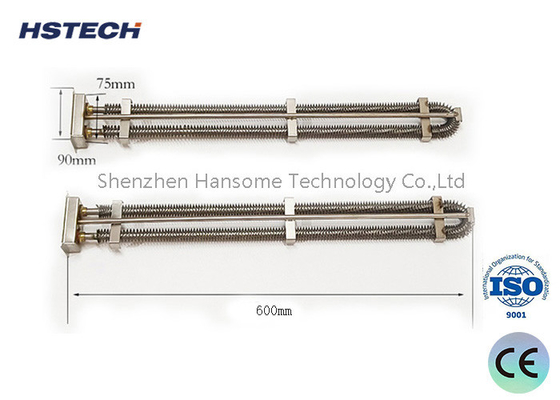

Detail display

Product Display
