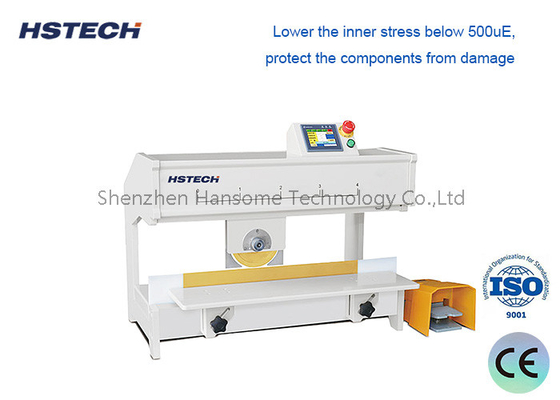

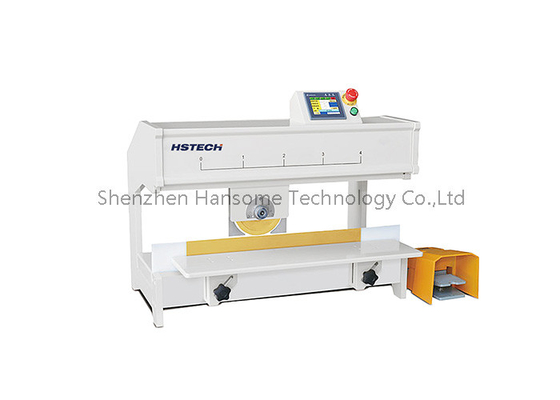

Pneumatic PCB Depaneling Equipment For Stress-Free Cutting Of Thin Boards With V-Groove HS-320 Model

Name: Pneumatic PCB Depaneling Equipment For Stress-Free Cutting Of Thin Boards With V-Groove HS-320 Model
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-320
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-320
MOQ:	1 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Sheet Metal

Voltage:

AC110V/220V

Blade:

Guillotine

Switch:

Feet Switch

Suitables:

All Boards With Or Without V-groove

Movment And Siting:

Whreel And Fit Cup

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

Thin Boards PCB Depaneling Equipment

V-Groove PCB Depaneling Equipment

Stress-Free Cutting PCB Depaneling Equipment

Product Description

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer

Application

This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)

Features

1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.
2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.

Specification

Model	HS-320
Efficient cutting length	350mm(larger size need customized)
Machine size	6505001130mm
Air pressure	0.5~0.7Mpa
Upper components height	39mm(max)
Down components height	19mm(max)
Pcb thickness range	0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove)
Air consumption	200-400(L/min)
Weight	200kg

About Packaging

COMPANY PROFILE

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
