Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug

Brand Name:	HSTECH
Model Number:	HS-S331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Soldering Robot

Axis:

3 Axis,with Rotation

Platform:

Single

Soldering Head:

Single

Warranty:

1 Year

Voltage:

AC220V/110V

Usage:

Pcb Soldeing,Welding,Circuit Board Soldering

Weight:

60kg

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Product Description

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug

Introduction

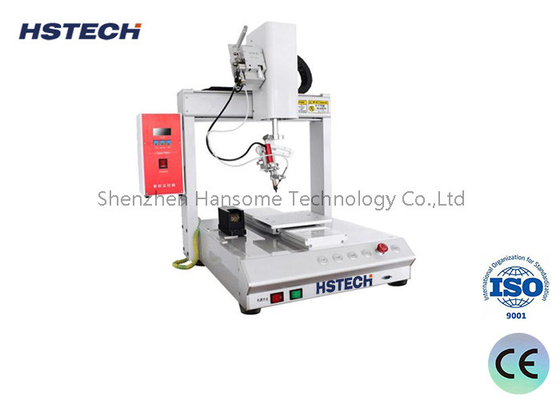

This automatic soldering machine is equipped with three-axis moving system and single head rotary axis, specializing in electronic manufacturing blind soldering problems, especially suitable for hybrid circuit boards and sensitive components SMT back-end process, widely used in PCB soldering wire, charger plugs, connector plugs, DC terminals, LED strip soldering and other fields.

Features

1.4-axis work, including X/Y/Z and R rotary movement, realize multi-angle welding.
2.Safe and environmentally friendly, soldering iron without nitrogen.
3.The soldering iron head can be adjusted in multiple directions to protect PCB and components.
4.Quick programming: align the key position of the product, enter to automatically generate the point and set the data.
5. High-precision stepping motor and drive system, with advanced algorithms, to ensure motion positioning and repeatability.
6. Automatic cleaning function, stabilize solder processing, extend the life of the soldering iron.
7. Handheld LCD teaching pendant, programming is simple and intuitive.

Specification

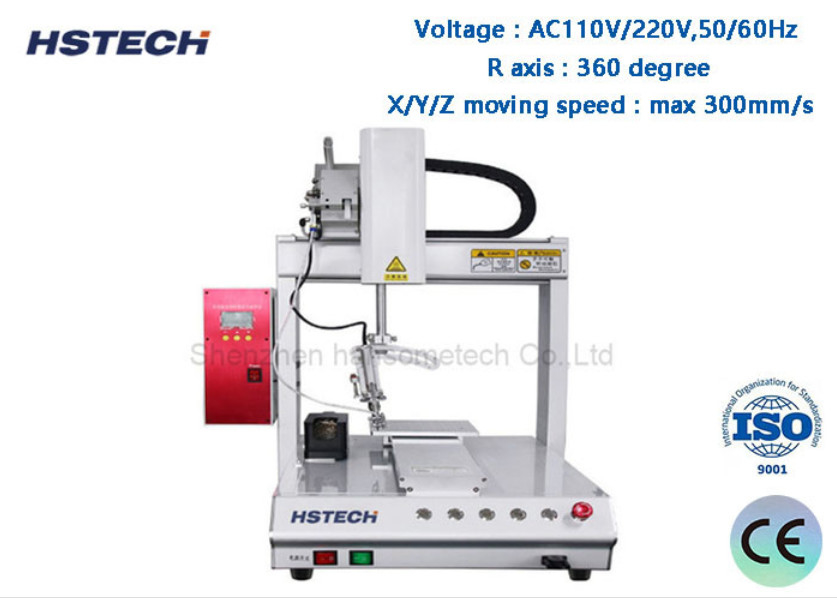

Model	HS-S331R
Voltage	AC110V/220V,50/60Hz
X/Y/Z working range	300300100mm
R axis	360 degree
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD,CorelDRAW
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	48kg
Machine dimension	520585800mm

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug 0

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug 2

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug 3

Teaching Pendant 220V Rotation Axis Automatic Soldering Robot for Connector Plug 4
