Automatic Bottom Side Routing PCB Router Machine with ERP System Compatibility and Dual Platform Cutting

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Highlight:

Automatic Bottom Side Routing PCB Router Machine

ERP System Compatibility PCB Depaneling Router Machine

Dual Platform Cutting PCBA Router Machine

Product Description

Automatic Bottom Side Routing PCB Router Machine with ERP System Compatibility

This embedded PCBA automatic wiring machine is specifically designed for bottom-side automatic routing operations of PCBA fixed on fixtures. After routing completion, the machine's nozzle uses vacuum suction to securely hold the PCBA to the fixture, facilitating separation of punched holes, curved PCBs, and other irregularly connected PCBs.

Key Features

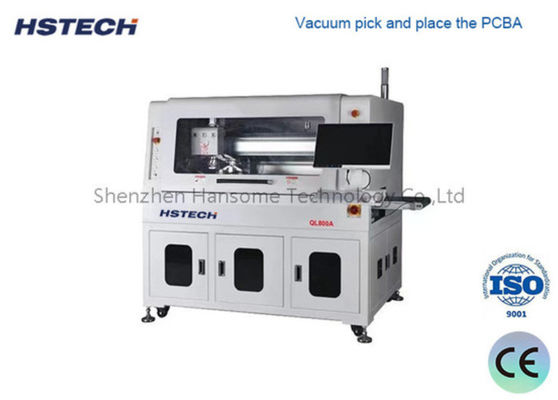

Vacuum Pick & Place PCBA System
Bottom Cutting Capability
Dual Platform Cutting
Broken Tool Detection
Automatic Line Connection
SPC Statistics & ERP Matching
Optional: Automatic Tool Change, Explosion-Proof Dust Suction, Air Monitoring

Technical Specifications

Model	QL800A
Max PCB Size	260x340mm
Min PCB Size	50x50mm
PCB Thickness	0.4-6mm
Transmission Height	900±50mm
Transport Direction	Left to Right
Transportation Speed	1500mm/s (max) Adjustable
Loading Mode	Section-type Transportation Guide Rail
Rail Width Adjustment	Automatic
Communication Interface	SMEMA
PCB Positioning	Fixtures Positioning
Picking System	Vacuum Suction Pick Up
Cutting Spindle/Speed	60,000 rpm/min, Germany brand (optional 100,000 rpm/min, Germany brand)
Cooling Type	Self Cooled Type
Automatic Tool Change	Optional
Break Tool Check	Yes
Separating Speed	5-100mm/s
Cutting Accuracy	±0.05mm
Milling Kit	φ0.8~φ3.0 Right Side Rotation, Shank Tungsten Steel
Repeat Positioning Accuracy	±0.1mm
Coordinate Moving Speed	1000mm/s
Out Plate Type	ESD Belt Transportation / Batch Panel Forwarding Unit
Waste Collection	Waste Cupboard Collection
Procedure Programming	GERBER Drawing Import / Editing Program Through Visual System
Air Supply	5-8 kg/cm³
Power Supply	AC380V, 50/60Hz, 3KW
Machine Size	1500x850x1600 mm
Weight	Approximately 800kg

Advanced Vision System

Excellent CCD system with imaging camera, Moritex lens, and measurement-level light source supports machine calibration, compensation, and positioning with exceptional stability and anti-disturbance capacity.

Vacuum Handling System

Omnipotent vacuum suction chuck for picking, placing, unloading, and production operations.

Composite Unloading System

Utilizes ESD anti-static belt to transport separated products on the top side while waste is transported on the bottom side, saving significant space through this efficient method.
