Automatic Bottom Side Routing PCB Router Machine with ERP System Compatibility

Brand Name:	HSTECH
Model Number:	RM-F550
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Offline PCBA Router Machine

Platform:

Double

Working Platform:

300*350mm

Repeat Accuracy:

±0.01

Cutting Accuracy:

±0.03

Machine Dimension:

1200*1050*1440mm(L*W*H)

Packaging Details:

Wooden package

Supply Ability:

20 sets per month

Product Description

Automatic Bottom Side Routing PCB Router Machine with ERP System Compatibility

Introduction

This machine is an embedded PCBA automatic wiring machine, specially designed for the bottom side automatic wiring operation of PCBA fixed on the fixture. After the wiring is completed, the machine is equipped with a nozzle that will use suction to tightly fit the PCBA to the fixture, thus facilitating the separation of punched holes, curved PCBs and other irregularly connected PCBs.

Features

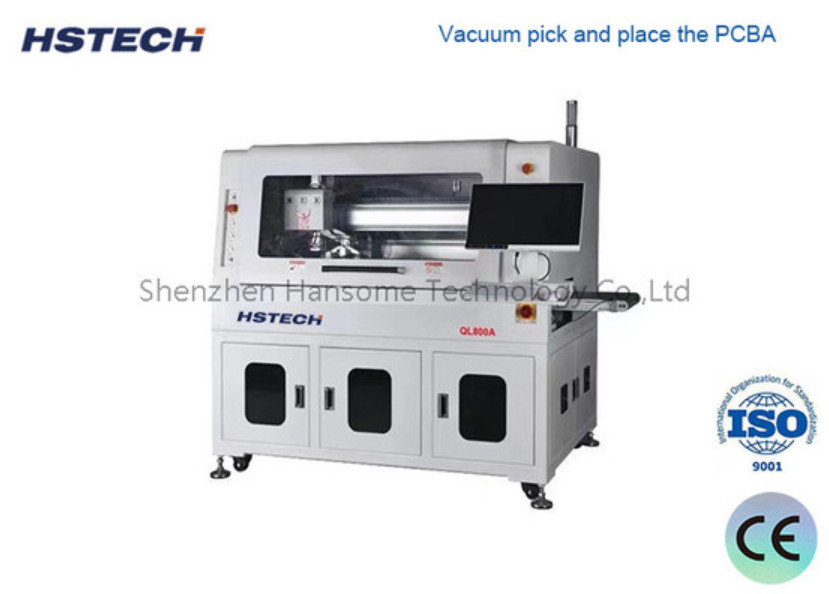

1.Vacuum Pick & Place PCBA
2.Bottom cutting
3.Dual platform cutting
4.Broken knife detection
5.Automatic line connection
6.SPC statistics & ERP matching
7.Can be equipped with: automatic knife change, explosion-proof dust suction, air monitoring

Technical details

Model	QL800A
Max PCB size	260x340mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
Transmission height	900±50mm
Transport direction	Left to right
Transportation speed	1500mm/s(max) Adjustable
Loading mode	Section-type transportation guide rail
Rail width adjustment	Automatic
Communication interface	SMEMA
PCB positioning	Fixtures positioning
Picking system	Vacuum suction pick up
Cutting spindle/speed	60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand)
Cooling type	Self cooled type
Automatic tool change	optional
Break knife check	Yes
Separating speed	5-100mm/s
Cutting accuracy	±0.05mm
Milling kit	φ0.8~φ3.0 right side rotation, shank Tungsten steel
Repeat positioning accuracy	±0.1mm
Coordinate moving speed	1000mm/s
Out plate type	ESD belt transportation / batch panel forwarding unit
Waste collection	Waste cupboard collection
Procedure programming	GERBER drawing import /editing program through visual system
Air supply	5-8 kg/cm³
Power supply	AC380V, 50/60Hz, 3KW
Machine size	1500x850x1600 mm
Weight	Appro. 800kg

Machine size

HSTECH

Bottom size routing and dust collector

HSTECH

Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.

HSTECH

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.

HSTECH

Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.

HSTECH
