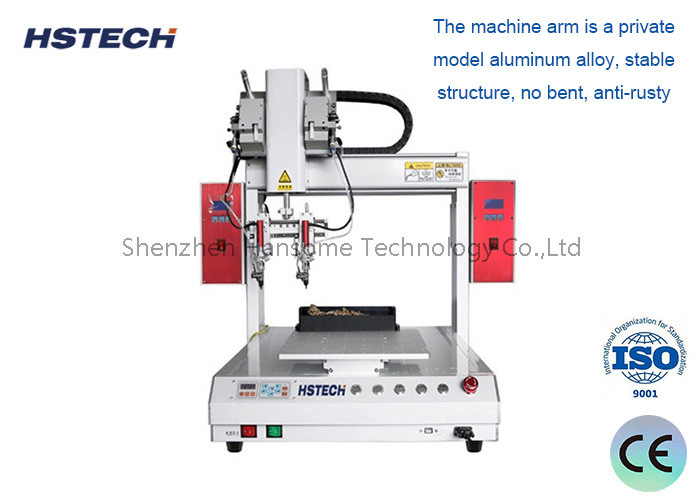

High Precision Automatic Soldering Robot with 400mm Moving Range

Brand Name:	HSTECH
Model Number:	HS-S441S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Auto Soldering Machine

Axis:

3axis

Moving Range:

400x400x100mm

Soldering Head:

Double

Platform:

Single

Voltage:

AC220V/110V

Usage:

Pcb Soldeing,Welding,Circuit Board Soldering

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Product Description

Dual Soldering Head 400mm Moving Range Timing Belt Auto Soldering Machine/Robot

Introduction

This automatic soldering machine is double soldering head with 400mmx400mm moving range, this machine is suitable for difficult process and soldering processing, especially suitable for welding of mixed circuit boards, heat sensitive components and sensitive devices in SMT back-end process

Specification

Model	HS-S441S
Voltage	AC110V/220V,50/60Hz
X/Y/Z working range	400400100mm
R axis	none
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD,CorelDRAW
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	48kg
Machine dimension	515585800mm

Features

1.3-axis work, 400x400mm travelling range, dead centre weldable.
2.Flexible welding, compatible with spot welding and drag welding.
3. All-aluminium body, solid and durable, anti-rust and anti-deformation.
4.Working procedure supports point-to-point and block-to-block copying, efficient programming.
5. Nitrogen-free soldering iron, safe and environmentally friendly.

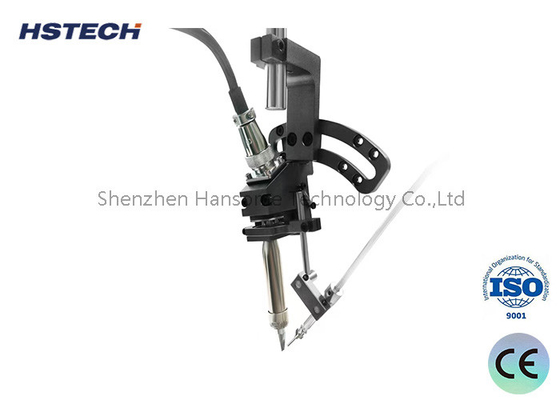

6. Multi-directional adjustment of the soldering iron head, protect PCB and components.
7. High-precision stepping motor and synchronous belt drive, combined with advanced algorithms to improve positioning accuracy and repeatability.
8.Auto-cleaning function, stable welding, prolong the life of the iron.

About Product

High Precision Automatic Soldering Robot with 400mm Moving Range 0

About Details

High Precision Automatic Soldering Robot with 400mm Moving Range 1

About Packaging

High Precision Automatic Soldering Robot with 400mm Moving Range 3
