5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products

5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products

Brand Name:	HSTECH
Model Number:	HS-S5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic Soldering Robot

Soldering Head:

Single

If Rotation:

Yes

Voltage:

220V/110V, Optional

External Communication:

RS232

Work Table:

Dual

Programing:

Teach Pandent

Packaging Details:

Wooden package, with foam inside

Supply Ability:

200 pcs per month

Product Description

Single Double Y Platform Temperature Control 5 Axis Automatic Soldering Robot

Introduction

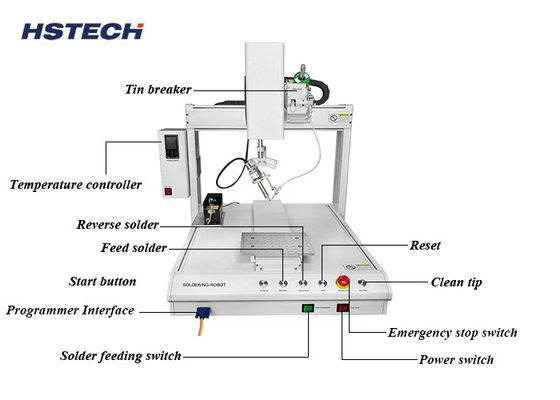

We call this soldering robot a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range.

Application

1, Semiconductor Products

2, optical products

3, Electronic Products

4, General home appliances

5, Precision Machines/Electrical Products

6, Large-scale mechanical products

7, General Consumer Goods

Features

5-axis soldering capability.
Stepper motor control for precision.
Advanced heating & broken tin management.
Hiwin Linear guide for smooth, flat movements.
Versatile soldering: spot, drag, & more.
Private aluminum alloy arm, stable & rust-resistant.
Pendant programming with 99 program storage.
Smoke filter system for longer iron life & better soldering.

Specification

Model	HS-S5331R
Power supply	Meanwell driver AC110V/220V
Air pressure	0.45-0.5Mpa
Axis	5
Moving range	X 500mm
	Y1 300mm
	Y2 300mm
	Z 100mm
	R 360degree
Moving speed	X/Y1/Y2 1-600mm/s
	Z 1-300mm/s
	R 1-100mm/s
Transport method	Linear guide
Repeat accuracy	±0.05mm
Platform load capacity	10kg
Z Axis load capacity	5kg
Y platform size	190*150mm
Heater power	150W
Edit mode	Handle panel
Program capacity	99
Communication port	RS232
Feeding	Single tin feeding system
Solder tin diameter	0.3-1.5mm
Machine dimension	720580645mm
Net Weight	65kg
