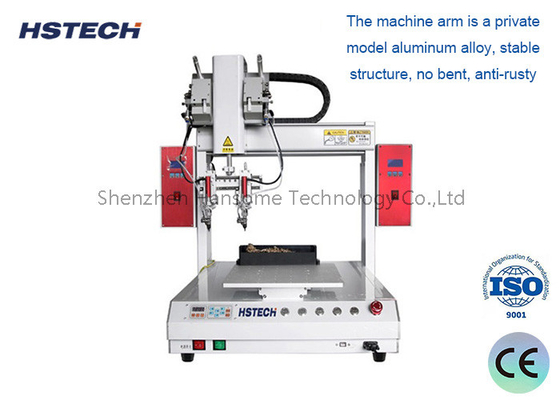

360 Degree Single Y Working Platform Automatic Soldering Machine With Double Soldering Iron

360 Degree Single Y Working Platform Automatic Soldering Machine With Double Soldering Iron

Overview:
This is a compact, desktop-sized robotic soldering system designed for precision soldering and assembly tasks. It features a modular, reconfigurable design that can be customized for a variety of PCB and electronic component soldering applications.

We have many options for the soldering machine, axis from 3 axis to max 8 axis, if rotation or not, and working platform single or dual, all depends on your requirement.

High-precision positioning
Adopting servo motor drive, the Y-axis work platform can achieve accurate positioning accuracy of ±0.05mm.
Equipped with high-resolution photoelectric encoder to ensure stable and reliable positioning.

Flexible welding
The work platform supports independent motion control of X/Y/Z axes.
It can flexibly weld PCBA boards of different sizes and shapes.

Fully automated
It has functions such as automatic loading, welding, and unloading to achieve full automation of the production process.
No human involvement is required, which greatly improves production efficiency and consistency.

Welding quality
Adopt constant temperature welding core and precise welding parameter control to ensure stable solder joint quality.
The solder joint has beautiful appearance, smooth transition, and no overflow soldering occurs.

Intelligent control

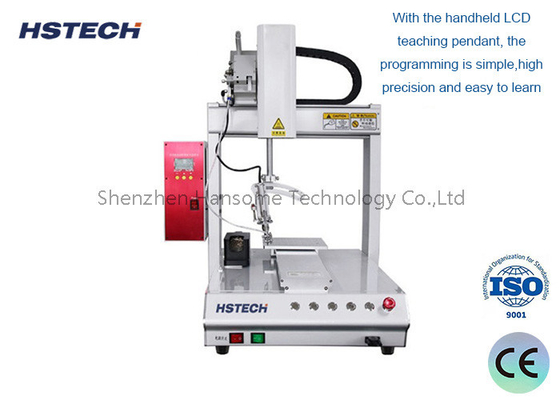

Equipped with human-computer interaction interface, welding parameters and process flow can be programmed.
Built-in fault diagnosis system can monitor the operation status of the equipment in real time.

Efficient energy saving
Adopting servo motor drive and intelligent control technology to greatly reduce energy consumption.
At the same time, it has the characteristics of low maintenance cost.

Features:

1.3-axis robotic arm with X, Y, Z motion
2.High-precision servo motors for accurate positioning
3.Integrated soldering iron tip with temperature control
4.Automatic solder wire feed system
5.Adjustable solder paste dispensing module
6.Compact desktop footprint (approx. 20" x 16" x 18")
7.Touchscreen HMI for programming and control
8.Compatible with standard G-code for easy integration
