High Precision 4 Axis Tabletop Soldering Robot 360 Degree With Dual Working Station

High Precision 4 Axis Tabletop Soldering Robot 360 Degree With Dual Working Station

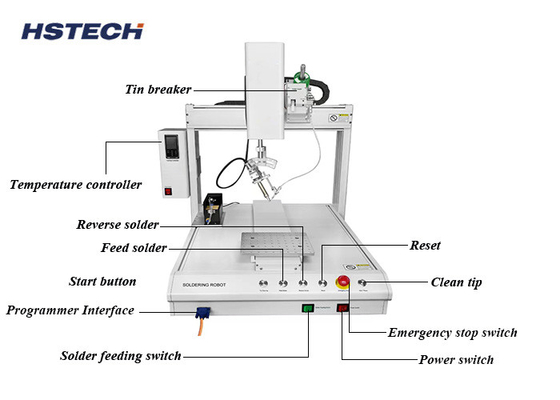

Automatic benchtop soldering machine, it used for instead of the traditional manual soldering. By make customized fixtures to fix the products, the temperature controller heating the solder tip, solder wire automatic feeding, the machine will automatic soldering the products according to the setted programs.

Features:

1, Stable structure, high precision soldering.

2, Benchtop/Desktop type, easy to moving and maintenance.

3, Use each box to set the programs, programs can storage and import directly.

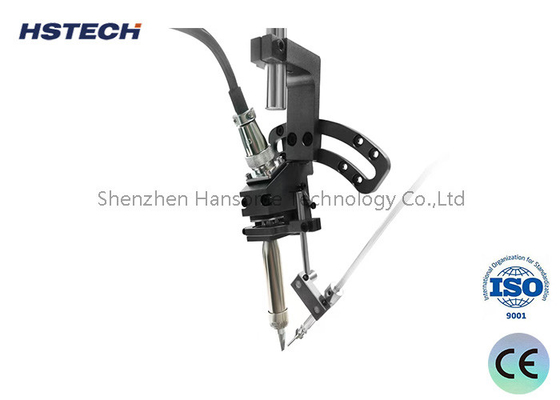

4, The soldering tip/iron available for 360degree rotation.

5, Traveling distance 500*300*300*100mm.

6, Automatic solder wire feeding.

7, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

8, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

9, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.

10, High quality heating and temperature controller, temp accuracy at ±2℃.

11, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

12, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

Othere Feature:

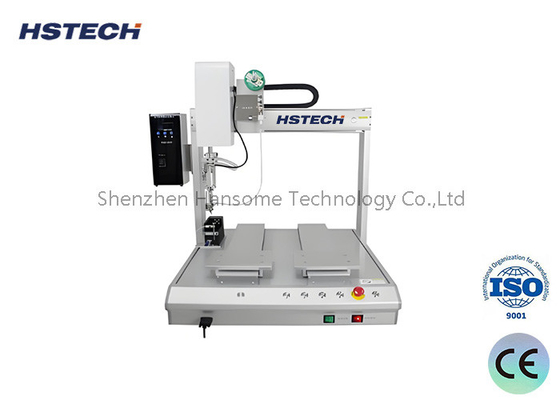

Dual workstation design
The robot has two independent work surfaces or work areas.
It can perform two different welding tasks at the same time, which improves production efficiency.

Automated welding
The robot has the functions of automatic material picking, positioning, welding, and detection to achieve fully automated welding.
The operator only needs to load the electronic components or PCB boards to be welded, and the robot can complete the subsequent welding work.

High-precision positioning
The robot adopts a high-precision positioning system, which can accurately align the welding tip with the welding point.
The welding quality is stable, which greatly improves the welding accuracy.

Flexibility
The welding path and parameters can be customized according to different welding requirements.
Supports a variety of welding methods, such as spot welding, wire welding, etc.

Integrated design
The robot integrates the welding station, feeding system, control system, etc.
It is compact and can be placed directly on the desktop for use.

Specification:

Application:

The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering.

It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.

Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
