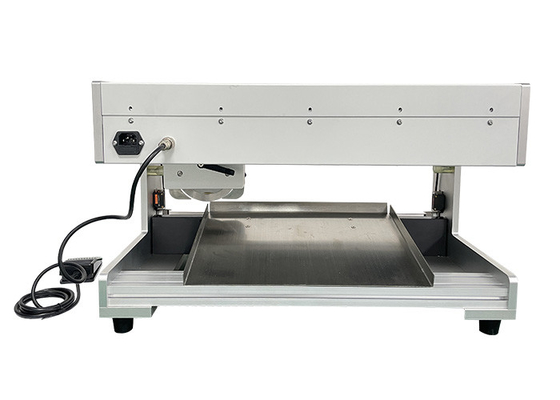

Professional PCB Depaneling Equipment for Precise and Accurate PCB Separation

Product Description:

The equipment operates on an air pressure of 0.4-0.6Mpa which makes it highly energy-efficient. It is also designed to handle components heights of up to 32mm, although customization options are available to suit specific needs. At a weight of 45kg or 65kg, the equipment is lightweight enough to be moved around easily, yet sturdy enough to withstand heavy usage.

The equipment features a circular blade size of 125mm*30mm*3mm, which ensures that it can cut through even the toughest of PCBs with ease. This makes it the perfect choice for anyone looking for reliable and efficient PCB cutting and separation equipment.

Whether you are in the electronics manufacturing industry or any other industry that requires the use of PCBs, the PCB Depaneling Equipment is a must-have tool. With its advanced features and high precision cutting capabilities, you can be sure of achieving optimal results every time. So why wait? Order yours today and experience the benefits of owning a top-quality printed circuit board cutter!

Features:

• Product Name: PCB Depaneling Equipment
• Principle: Board insert to the V-slot, blade moving cutting
• Blade Type: Bottom linear blade, upper circular blade
• Separation Width: Best 1~150mm
• PCB Thickness: 0.6-3.2mm
• Linear Blade Size: 420mm×65mm×6mm

This printed circuit board depaneling machine uses a v-cut PCB depanelizer to cut the board using a blade moving cutting principle. It has a bottom linear blade and an upper circular blade and can handle PCBs with a thickness of 0.6-3.2mm. The separation width can be adjusted from 1~150mm and it comes with a linear blade size of 420mm×65mm×6mm.

Technical Parameters:

This product is an advanced blade moving PCB depaneling equipment, also known as a v-cut PCB depanelizer or printed wiring board splitter. It is designed to handle PCB thickness ranging from 0.8mm to 3mm. The blade material is made of high speed steel, and the linear blade size is 420mm×65mm×6mm. The principle of operation is board insert to the V-slot, blade moving cutting, and the separation speed is adjustable from 300~500mm/second. The maximum components height is ≤32mm (or customized). The product operates at a voltage of AC110V/220V 50/60Hz and requires an air pressure of 0.4-0.6Mpa. The best separation width is 1~200mm.

Applications:

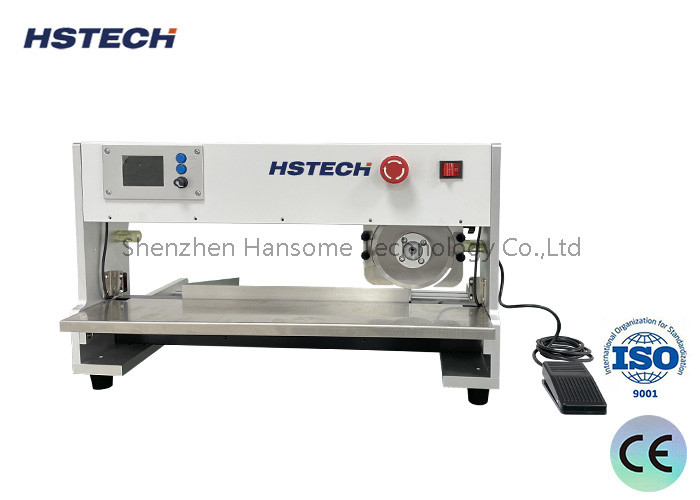

HSTECH HS-F390 PCB Depaneling Equipment is a CE certified product that is manufactured in China. It is a high-quality printed wiring board splitter that is designed to separate PCBs in a quick and efficient manner. The machine has a minimum order quantity of 1 set and a supply ability of 200 sets per month with a delivery time of 10-15 work days.

The HS-F390 PCB Depaneling Equipment has a separation speed of 300~500mm/second which is adjustable to suit your needs. The blade material is made of high-speed steel which makes the cutting process precise and accurate. The components height of this machine is ≤32mm (or customized) which means it can handle a wide range of PCBs with different sizes.

This printed wiring board splitter is versatile and can be used in a variety of product application occasions and scenarios. It can be used in the electronics industry, especially in the production of printed circuit boards (PCBs). It is also suitable for small-scale production, repair, and maintenance of electronic products. This machine is ideal for separating a large number of PCBs in a short period of time.

The HSTECH HS-F390 PCB Depaneling Equipment is easy to operate and maintain. It has a power of 60W and comes with different payment terms such as T/T, Western Union, and MoneyGram. The machine is packaged in a wooden case to ensure its safety during transportation. The machine's dimensions are 710x450x420mm or 900x450x420mm which makes it compact and easy to store.

In conclusion, the HSTECH HS-F390 PCB Depaneling Equipment is a high-quality printed wiring board splitter that is suitable for a wide range of product application occasions and scenarios. It is efficient, easy to operate, and maintain. The price is negotiable, and it comes with different payment terms to suit your needs. If you are looking for a reliable and efficient PCB Depaneling Equipment, the HSTECH HS-F390 is the right choice for you.

Support and Services:

The PCB Depaneling Equipment product comes with the following technical support and services:

- User manuals and documentation for installation, operation, and maintenance

- Online technical support through email or phone

- On-site technical support for installation, training, and troubleshooting

- Warranty for the product and replacement parts

- Customization and modification services to meet specific requirements

Packing and Shipping:

Product Packaging:

• The PCB Depaneling Equipment will be securely packed in a wooden crate to prevent any damage during transportation.
• The crate will be labeled with the product name, specifications, and handling instructions.

Shipping:

• The PCB Depaneling Equipment will be shipped via a trusted and reliable shipping company.
• The shipping cost will be calculated based on the destination and weight of the product.
• The customer will be provided with a tracking number to monitor the status of the shipment.
• The estimated delivery time will be communicated to the customer upon shipment.

FAQ:

Q: What is the brand name of the PCB Depaneling Equipment?

A: The brand name of the PCB Depaneling Equipment is HSTECH.

Q: What is the model number of the PCB Depaneling Equipment?

A: The model number of the PCB Depaneling Equipment is HS-F390.

Q: Is the PCB Depaneling Equipment certified?

A: Yes, the PCB Depaneling Equipment is CE certified.

Q: Where is the PCB Depaneling Equipment manufactured?

A: The PCB Depaneling Equipment is manufactured in China.

Q: What is the minimum order quantity for the PCB Depaneling Equipment?

A: The minimum order quantity for the PCB Depaneling Equipment is 1 set.

Q: What are the payment terms for purchasing the PCB Depaneling Equipment?

A: The payment terms for purchasing the PCB Depaneling Equipment are T/T, Western Union, and MoneyGram.

Q: What is the supply ability for the PCB Depaneling Equipment?

A: The supply ability for the PCB Depaneling Equipment is 200 sets per month.

Q: How long is the delivery time for the PCB Depaneling Equipment?

A: The delivery time for the PCB Depaneling Equipment is 10-15 work days.

Q: How is the PCB Depaneling Equipment packaged?

A: The PCB Depaneling Equipment is packaged in a wooden case.

Q: Is the price of the PCB Depaneling Equipment negotiable?

A: Yes, the price of the PCB Depaneling Equipment is negotiable.
