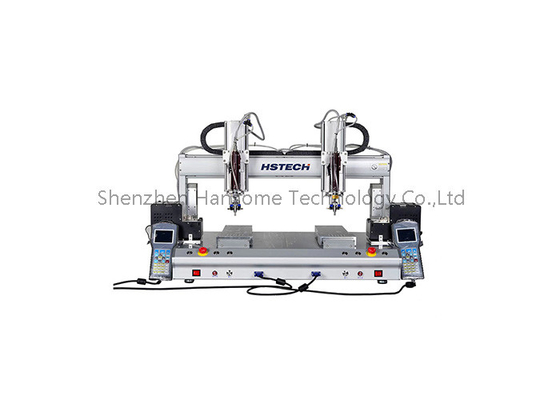

Automatic Soldering Robot Tabletop Soldering Machine With Dual Platform And Stepper Motor

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This advanced automatic soldering system boasts a dual-table design, equipped with a single soldering head that incorporates two soldering irons, each independently controlled by its own temperature regulator. Notably absent, however, is a rotation function. Ideal for both standard PCB board soldering tasks and production lines, this model harnesses the power of two soldering irons operating simultaneously, significantly enhancing soldering efficiency. Operated by a combination of air pressure and electricity, it relies on a teach pendant box for intuitive, point-by-point manual programming, followed by seamless transition to automated soldering.

Key Features

Compact Tabletop Design:
Crafted for tabletop placement, this soldering machine is a perfect fit for cramped workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precise Temperature Adjustability:
Offering versatile temperature settings, it enables users to fine-tune the soldering process according to the specific requirements of the solder material and electronic components.

Dual Operation Modes:
Combining the convenience of automatic soldering with the precision of manual control, this machine empowers users to tackle a wide range of tasks with ease and flexibility.

Versatile Soldering Tools:
Equipped with either a high-performance soldering iron or a hot air tool, it caters to diverse soldering techniques, enhancing overall productivity and versatility.

Comprehensive Safety Measures:
Boasting built-in safety features like automatic shut-off and thermal protection, it ensures a worry-free and secure soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Featuring a straightforward control panel or an advanced touchscreen interface, it provides a seamless user experience, making operation intuitive and hassle-free.

Benefits

Boosted Production Efficiency:
This system significantly accelerates production by facilitating rapid and uniform soldering of components, leading to a streamlined workflow and heightened productivity.

Precision-Oriented Soldering:
Delivering unparalleled accuracy, it minimizes the likelihood of damaging delicate electronic parts, ensuring the integrity and reliability of the final product.

Broad Application Scope:
Versatile in nature, it is ideal for diverse applications, spanning from creative prototyping and flexible small-batch production to intricate repairs and routine maintenance tasks.

Economical Investment:
As a compact tabletop solution, it presents a cost-effective alternative for small businesses and startups, offering advanced soldering capabilities without the hefty price tag of larger, industrial-scale automated systems.

Applications
Electronics Manufacturing:
Commonly used in the assembly of PCBs for consumer electronics, automotive components, and industrial equipment.
Prototyping:
Ideal for R&D environments where rapid prototyping and testing of circuits are required.
Repair Services:
Used in electronics repair shops for fixing or replacing components on malfunctioning devices.
Hobbyist Projects:
Popular among electronics enthusiasts for DIY projects and custom circuit designs.

Features:

1. Dual-Table Design with Dual-Iron Single Moving Head:
   This innovative soldering system boasts a dual soldering table configuration, paired with a single moving head equipped with two soldering irons, maximizing workspace efficiency.

2. Independent Temperature Control for Each Iron:
   Each soldering iron features an individual temperature controller, enabling precise temperature adjustment tailored to specific soldering needs.

3. Eco-Friendly Nitrogen-Free Soldering:
   Employing nitrogen-free soldering irons, this machine promotes environmental sustainability while ensuring operator safety.

4. Multi-Directional Head Adjustment:
   The soldering head can be tilted using a radian fixture, facilitating multi-directional adjustments to protect delicate PCB boards and components from accidental damage.

5. High-Precision Motion Control:
   Powered by a high-precision stepper motor and timing belt drive system, coupled with advanced motion control algorithms, this machine ensures exceptional positioning accuracy and repeatability.

6. Built-in Automatic Cleaning Function:
   The machine's automatic cleaning feature enhances soldering stability and extends the lifespan of the soldering irons, reducing maintenance costs.

7. Intuitive Handheld Teaching Pendant:
   The handheld teaching pendant simplifies programming, making it user-friendly and quick to learn, even for beginners.

Specification:
